Conexer Simplus Single HD-DVB-T Modulator

£x.xx

Manufacturer: Antiference

Login to view price

Product Information

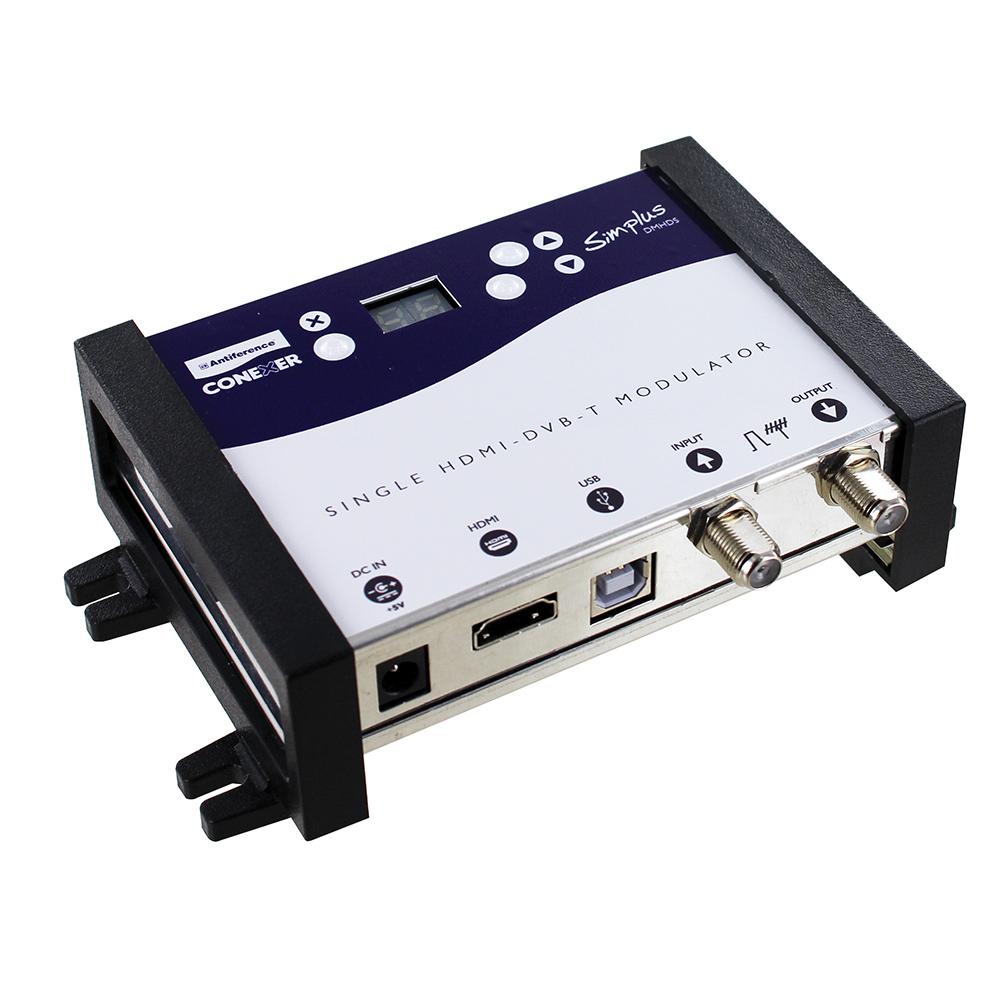

Conexer Simplus Single HDMI Modulator

Simple to use single input HDMI to DVB-T modulator. This ‘state of the art’ product, is a HD encoder. The  video and audio input can be taken from HDMI.  After compressing the video into H264 and audio in AAC or MPEG1-L2 the output can be configured as DVB-T signal.Stand alone configuration is made easy through 3 tact switches and ergonomic menu’s. To make the configuration of the DMHDS ultra simple, a special software "DMHDiface" is available that you can download from the Antiference website:
www.antiference.co.uk/product/conexer-single-hd-dvb-t-modulators/



Key Features

  • Simple HDMI to DVB-T modulator for distribution of HD content over a coax RF system

  • VHF/UHF output

  • Basic front panel controls for simple set up

  • Full control via Windows software for LCN, channel name etc

  • Useful for SKY HD/Q, CCTV, DVD player etc



Specification



Video Input: HDMI

Resolution Modes: 480p, 576p, 720p, 1080i, 1080p

Compression: h.264 - bitrate 5-15Mb/s

Audio Input: HDMI

Sample Rate: HDMI (32kHz/44.1kHz/48kHz)

Compression: AAC-LC/MPEG-1 - L2 bitrate 128-384 Kb/s

DVB Processing Table Insertion: PAT, PMT, SDT, NIT

Configuration: Channel/Network name, SID, LCN, TSID, ONID, NID, versions, audio, video PIDs

DVB-T Output Frequency/level: 170-230 MHz + 470-862 MHz/ 85 dBµV

Constellation - FEC: QPSK/16QAM/64QAM - 1/2, 2/3, 3/4, 5/6, 7/8

Guard Interval: 1/4, 1/8, 1/16, 1/32

Mode-MER: 2K/8K, - 31dB

Power Connector DC 2.1mm: +5V

Consumption: 10 Watts

Dimensions LxWxH: 150x130x35mm

Weight: 0.45kg





Product Code: DMHDS

Customer Reviews

This product hasn't been reviewed yet. Write a review
