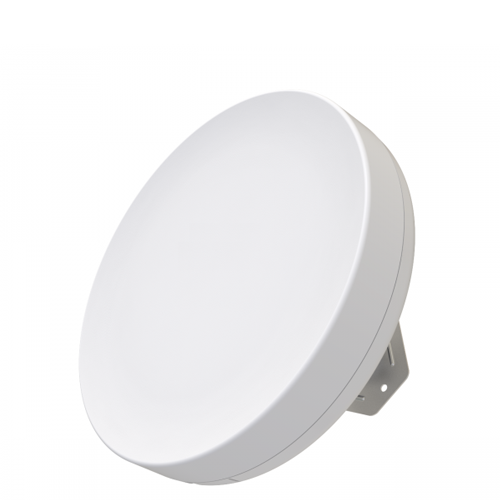

Antiference Clear Flow BEAM PRO – 5.8GHz 900Mbps Bridge Extender

£x.xx

Manufacturer: Antiference

Login to view price

Product Information

Antiference Clear Flow wireless networking products are a versatile range of WiFi devices for creating and extending wireless networks. They're programmable via onboard software and are smart device compatible. Available as ceiling & in-wall AP devices plus point to point bridge extenders.



Technical Specifications:

  • Chipset: Qualcomm QCA9563+QCA8337+QCA98866
  • DDR: 128MB
  • Flash: 16MB
  • PA Chip: 5.8g sky85728-11
  • Antenna: Built in 12dBi Antenna
  • Wireless Standard: IEEE802.11a/ac/an
  • Transmission Rate: 5.8GHz: 867Mbps
  • Indicator: 5* Indicators: Power/WAN/LAN/WiFi/Level
  • IP65 rating
  • 24KV Lightnin Protection
  • MTBF: 250000H
  • installation Way: Wall-Mounted/Pole-Mounted
  • Plastic Case (Imported ABS Material)



RF Parameters:

  • Output Power (max): 200mW (23dBm)
  • Receiving Sensitiviy (Max): -96dBm
  • Frequency: 5.180GHz-5.825GHz


Modulation Mode:

  • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
  • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps
  • 64@QAM@48/54Mbps, 256-QAM@173/400/867Mbps
  • MIMO-OFDM: MCS 0-15



Physical Ports:

  • 1* 10/100/1000Mbps WAN RJ45 Ethernet port;
  • 1* 10/100/1000Mbps LAN RJ45 Ethernet port;
  • 1* Reset / WPS Button


Power Supply:

  • Power Supply: 802.3af/802.3at POE Power Supply(0-100m)
  • Power Adapter: 48V 0.5A POE Power Adapter(Configured)
  • Power Consumption: <8W



Physical Features:

  • Size: 200*400mm
  • Weight: 0.37Kg


Working Environment:

  • Working Temperature: -40C~55C
  • Storage Temperature: -50C~75C
  • Operation Humidity: 10%~90%RH Non-condensing
  • Storage Humidity: 5%~90%RH Non condensing


BEAM PRO

Product Code: CF-A5
