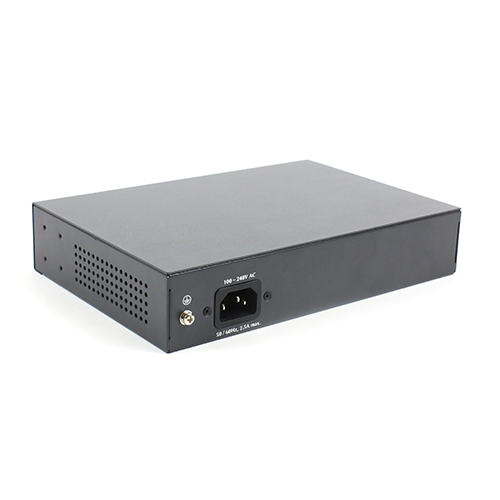

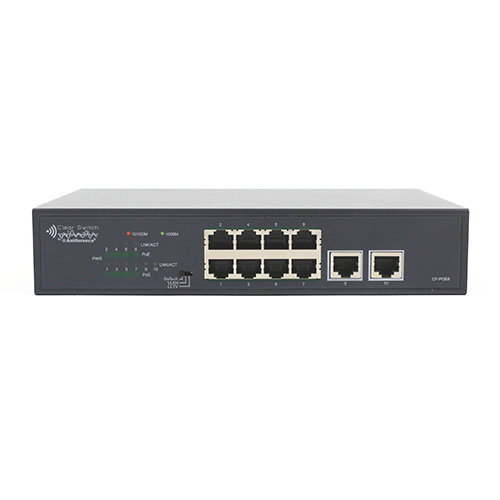

Antiference Clear Flow CF-POE8 Clear Switch 8 Port Gb Ethernet Switch with PoE

£x.xx

Manufacturer: Antiference

Login to view price

Product Information

Antiference Clear Switch 8 Port Gb Ethernet Switch with PoE



Product Description

  • Gb Ethernet switch range for use with Clear Flow networks
  • 10/100/1000Mbps Ethernet ports
  • 4 or 8 port versions
  • 48v PoE on ports 1 – 8
  • 2 up/downlink (non-PoE) ports



Specification



Model: CF-POE8

Standard: IEEE802.3, IEEE802.3u,IEEE802.3ab, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at

Network Media(Cable): 10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5 cable (≤100m) 1000BASE-T: UTP category 5e,6 cable (≤100m)

MAC Address Table: 8K, Auto-learning, Auto-aging

Transfer Mode: Store-and-Forward

Frame Forward Rate: 10Base-T: 14881pps/Port 100Base-TX: 148810pps/Port 1000Base-T: 1488095pps/Port

Switching Capacity: 12G | 20G

Dimensions (L*W*H): 160*92.5*28mm | 220 *150*44mm

Fan: Fanless | Fan

Power Supply DC: 55V/1.1A Adapter | AC: 100~240V, 50/60Hz

PoE Port: Port1~4 | Port1~8

PoE Power on RJ45: Mode A 1/2(+),3/6(-)

PoE Power Output: Voltage: 55V DC Power: 32W(Max)

PoE Power Budget: 55/110W (According to the Adapter power) | 120W

Temperature: Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F ) Storage Temperature: -40 °C ~ 70 °C (-40 °F ~158°F )

Humidity: Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing







Product Code: CF-POE8
