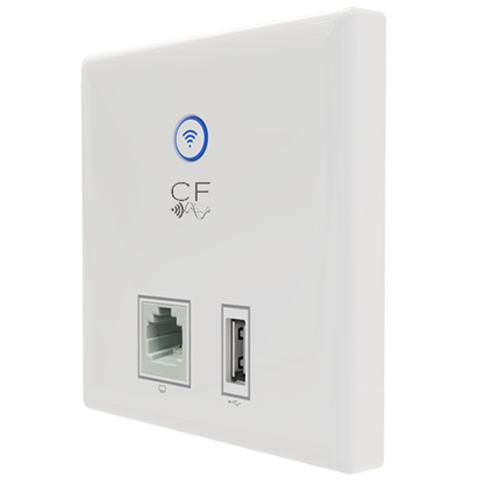

 The WAP D is a dual-band WiFi access point simultaneously transmitting WiFi over the 2.4GHz and 5.8GHz bands.

Features

• Qualcomm Chipset
• Open WRT OS
• Wifi Transfer Tool
• Network
• USB Charging

Technical Specifications

• Chipset: QCA9531
• DDR: 64MB; Flash: 16MB
• 2*2dBi Internal Antennas
• IEEE802.11b/g/n

RF Parameters

• Output Power (Max): 80mW (19dBm)
• Receiving Sensitivity (Max): -96dBm
• Frequency: 2.4GHz - 2.4835GHz

Modulation Mode

• DSSS: DBPSK@1Mbps, DQPSK @2Mbps, CCK@5.5/11Mbps
• OFDM: BPSK@6/9Mbps, QPSK @12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
• MIMO-OFDM: MCS 0-15

Transmission Rate

• 11b: 1, 2, 5.5, 11Mbps
• 11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
• 11n: MCS0-MCS15 (20MHz and 40MHz Analog Bandwidth)
• 20MHz: 144.4Mbps
• 40MHz: 300Mbps

Physical Ports

• 1* 10/100Mbps WAN RJ45 Port, Support 48V POE
• 1* 10/100Mbps LAN RJ45 Port
• 1 x USB 5v 1Amp
• WiFi Indicator, LED Light

Power Supply
Power Supply: 802.3af/802.3at POE Power Supply (0-100m)
Power Adapter: 48V 0.32A POE Power Adapter
<8W

IP Index

• IP41 rating
• MTBF>250000H

Installation

• In Wall Installation
• Plastic Case (Imported ABS Material)
• Size: 86*86*33mm
• Weight: 101g

Working Enviroment

• Working Temperature: -10 °C ~ 65 °C
• Storage Temperature: -40 °C ~ 70 °C
• Operation Humidity: 10% ~ 90% RH Non-condensing
• Storage Humidity: 5% ~ 90% RH Non-condensing


Product Code: CF-E537AC
