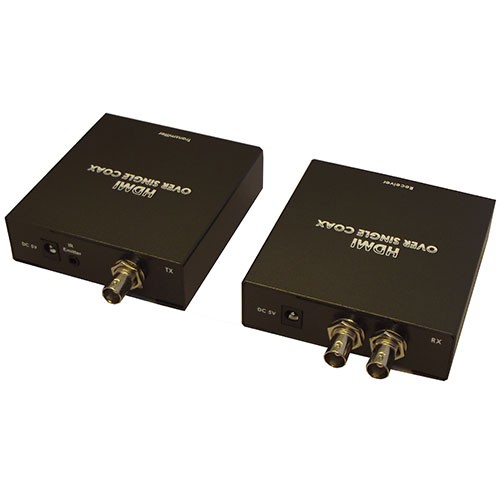

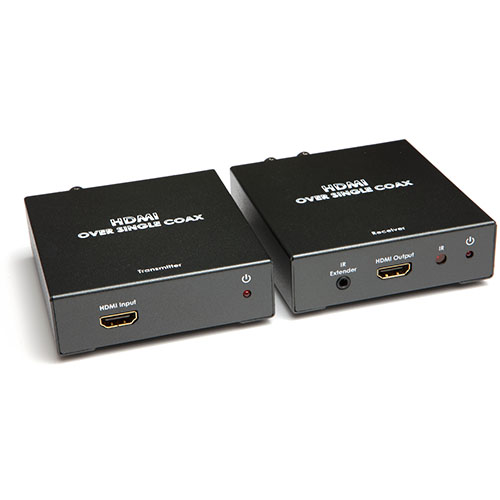

Antiference HDMIECOAX HDMI over Coax Extender Kit

HDMIECOAX sends HDMI signals over a single 75Ohm coaxial cable up to 100m away. Featuring in-built IR control and supporting HDMI v1.3 for full 1080p quality picture. The kit can also be daisy-chained up to 4 levels with additional receiver units (available seperately).

Technical Specifications

• HDTV Resolutions: 720p, 1080i, 1080p
• Video Bandwidth: 3Gbps
• Input Video Signal: 1.2 Volts P-P
• Input DCC Signal: 5.0 Volts P-P
• Transmitter Inputs: HDMI
• Transmitter Outputs: BNC, 3.5mm Jack (IR Emmiter)
• Receiver Inputs: BNC Input Port, 3.5mm Jack (IR Emmiter)
• Receiver Outputs: HDMI, BNC Output Port
• Dimensions: 98.5x92.3x28mm
• Limited Warranty: 1 Year Parts & Labour
• Operating Temperature: +0 to +40°C (+32° to +104°F)
• Operating Humidity: 10% to 85% (non-condensing)
• Storage Temperature: -20° to +60°C (+20° to +140°F)
• Storage Humidity: 10% to 85% (non-condensing)

Product Code: HDMIECOAX
