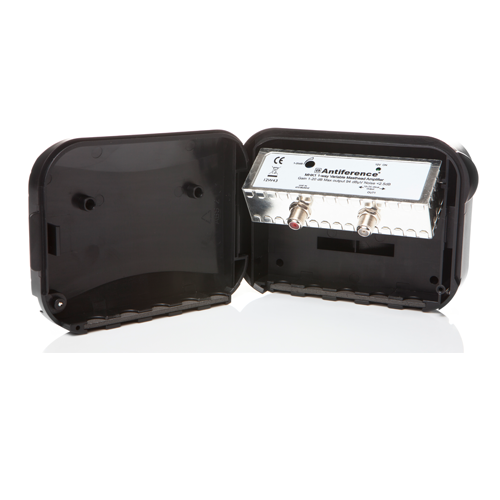

Antiference MHK1LTE 75 Series Masthead 1 Way Amplifier with PSU

The Antiference MHK range of fully screened wideband mast head amplifiers is designed for the professional installer using the latest SMD components and technology for reliability and low noise. These models are designed for amplifying digital signals in fringe reception areas or to overcome si gnal splitting losses and attenuation in long cable runs from aerial to theoutlet plate or receiver.

The MHK range of masthead amplifiers are fully screened for high immunity to interference and impulsenoise and are fitted with F-connectors for reliable connection. Built in to a weatherproof housing, they  can be wall / facia mounted using the screw holes provided in the mast mounting bracket or mounted on a mast of up to 50mm diameter.

Amplifier is supplied with Aniference PF1 12V power supply unit.

Specification

• No. of Inputs:1
• No. of Outputs:1
• Frequency Range:470-862MHz UHF
• Gain:1-20dB
• Max Output:102dB
• Noise Max:<2.5dB
• Power Requirement:25mA

Product Code: MHK1LTE
