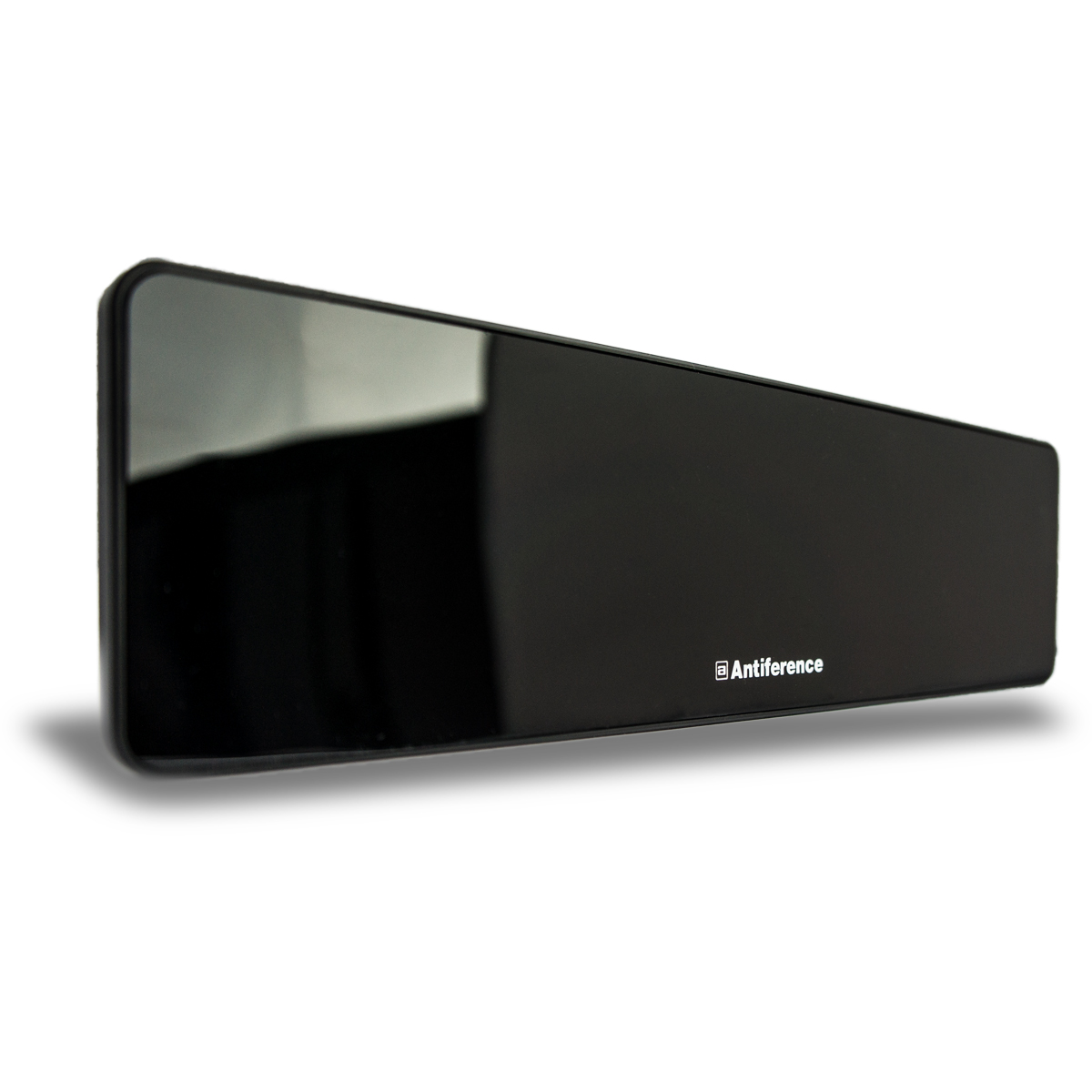

Can be used as a passive or amplified aerial!

Key Features

Recieves Freeview channels.

Suitable for weak signal areas when using low noise amplifier.

Amplifier provides up yo 20dB fixed gain.

Power-on indicator with on/off switch for energy saving (with amplifier)

Suitable for strong signal areas as passive aerial.

Reception range: Channels 21-60.

LTE tuned.

Performance

Frequency: VHF - UHF - 470-790MHz television

Outpout Level: Max 95BµV

Channels: 21-60

Impedance (Ω): 75

For weak signals area (With amplifier)

Powered via Digital Receiver:

Plug the aerial's coaxial cable to the ANT jack of the external amplifier and plug the amplifier's coaxial cable to the ANT jack of your digital receiver, this will get 5V/30mA power from the digital receiver.

Powered via AC/DC adaptor:

Plug the aerial's coaxial cable to the ANT jack of the external amplifier and plug the amplifier's coaxial cable to the RF jack of your TV. Plug the power adaptor's DC plug to the DC jack of the external amplifier and the power plug to the electrical outlet.

For strong signals arewa (Without amplifier)

Connection to the Digital Reciever:

Plug the aerial's coaxial cable to the ANT jack of your digital receiver.

Connection to your TV:

Plug the aerial's coaxial cable to the RF jack of your TV.

Additional Information

You can use the antenna with or without its amplifier, if you are unsure of the location of your transmitter, we recommend you use the amplifier on initial installation. If not all channels are received, please try changing the position of the aerial first, then try removing the amplifier if this does not fix the problem. Please note; too much signal can cause issues similar to not enough signal.

Product Code: SS200/FL
