Audio-Technica AT-LPW30TK Manual Belt-Drive Wood Base Turntable

£x.xx

Manufacturer: Audio Technica

Login to view price

Product Information

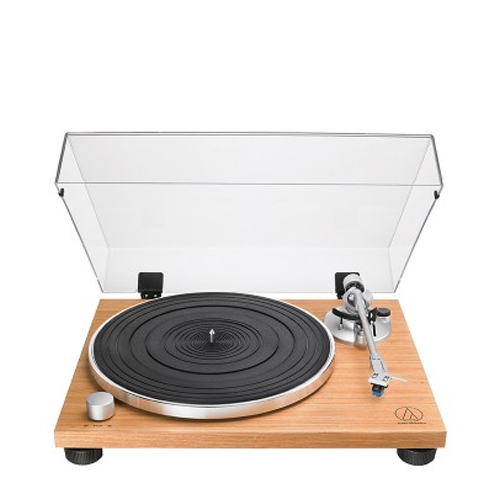

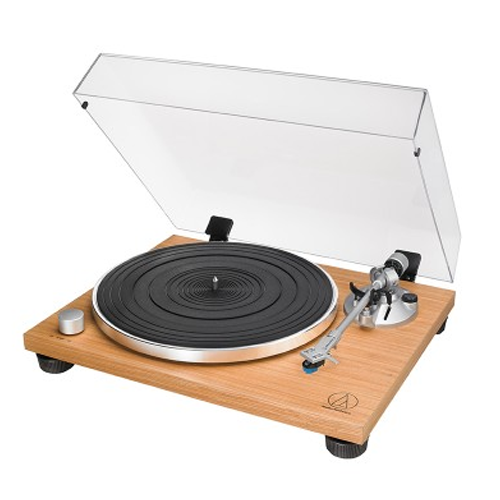

The AT-LPW30TK is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. The two-speed (33-1/3 and 45 RPM) turntable features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated teak veneer to limit low-frequency acoustical feedback.

The turntable includes a straight aluminium tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95C Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95C cartridge, which comes with a 0.6 mil conical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW30TK is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.



Features:

  • Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
  • Fully manual operation
  • Adjustable dynamic anti-skate control
  • Professional anti-resonance, die-cast aluminium platter with rubber mat
  • AT-HS4 universal ½"-mount headshell and AT-VM95C Dual Moving Magnet phono cartridge with 0.6 mil conical stylus
  • AT-VM95C cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
  • Straight tonearm with hydraulically damped lift control and lockable rest
  • Anti-resonance MDF (medium density fiberboard) plinth with teak simulated wood veneer
  • Built-in switchable phono pre-amplifier for phono or line-level output
  • AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
  • Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover



Specifications:

  • Type: Belt-drive manual turntable
  • Motor: DC servo
  • Drive Method: Belt drive
  • Speeds: 33-1/3 RPM, 45 RPM
  • Turntable Platter: Die-cast aluminum
  • Wow and Flutter: < 0.15% WRMS (33 RPM) at 3 kHz
  • Signal-to-Noise Ratio: >60dB
  • Output Level: Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec
  • Pre-amp “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec
  • Phono Pre-Amp Gain: 35 dB nominal, RIAA equalized
  • Power Supply Requirements: 100-240V AC, 50/60 Hz, 0.5 A Max.
  • Power Consumption: 110 V 60 Hz
  • Working: 1.1 W
  • Motor off: 1.0 W
  • Power off: 0.1 W
  • Dimensions: 420.0 mm (16.53") W x 340.0 mm (13.38") D x 116.9 mm (4.6") H
  • Weight: 3.90 kg (8.60 lbs.) without dust cover
  • Tonearm type: Static balanced straight aluminum pipe tonearm
  • Effective arm length: 223.6 mm
  • Overhang: 18.6 mm
  • Tracking error angle: <2 degrees
  • Applicable cartridge weight: 12-17 g
  • Stylus pressure adjustment range: 0-3 g
  • AC adapter: 12 V, 0.5 A
  • Replacement Stylus: AT-VMN95C



Accessories Included:

  • Dust cover, Platter
  • Turntable Mat
  • Drive belt
  • Counterweight
  • AT-HS4 headshell
  • AT-VM95C stereo cartridge
  • 45-RPM adapter
  • RCA audio cable (approx.. 1.0 m (3.3’))
  • AC adapter (approx. 1.5 m (4.9’)) (AD-SA1205WE)
  • Dust cover hinges



Product Code: AT-LPW30TK
