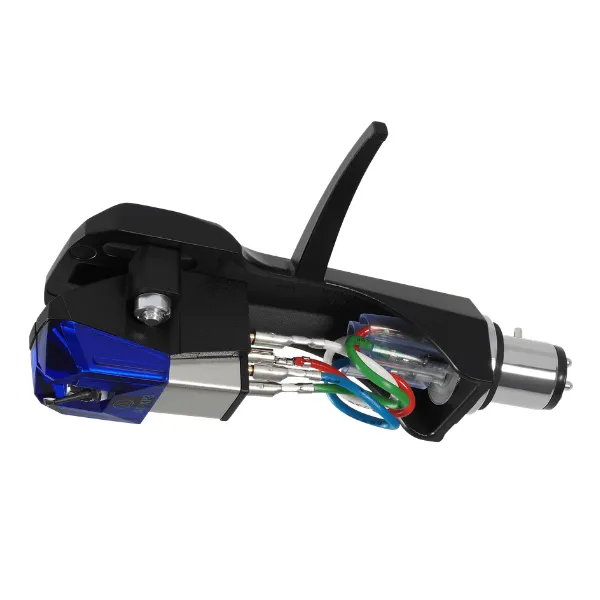

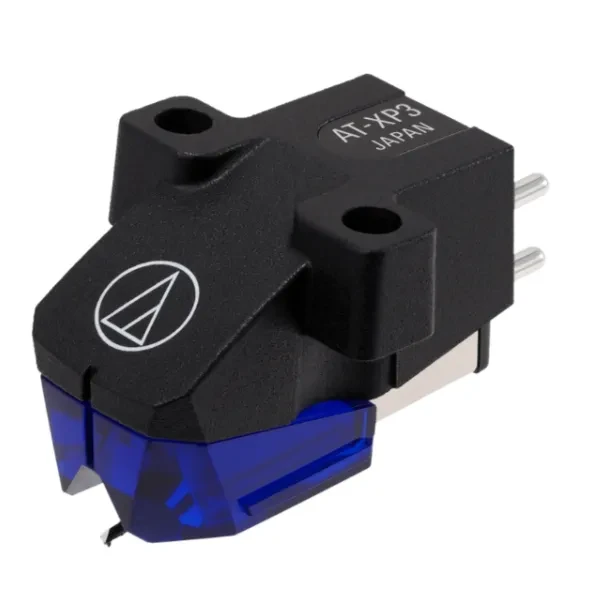

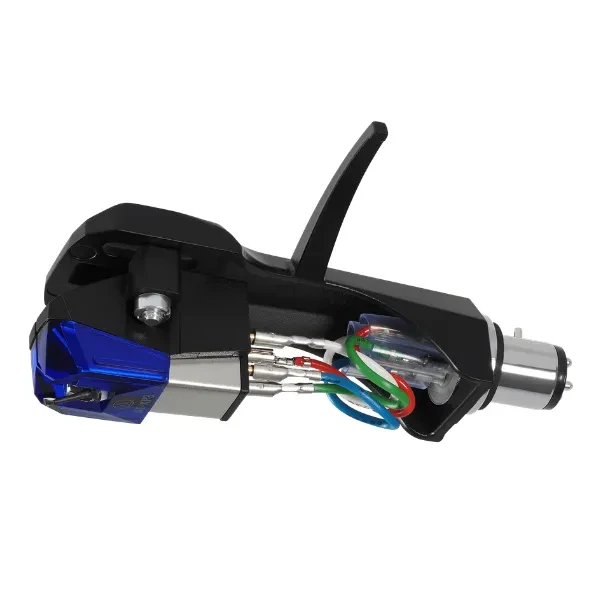

The AT-XP3/H pairs the AT-XP3 audiophile DJ cartridge, pre-mounted on the AT-HS6BK headshell, for high-quality specialist DJ playback. The AT-XP series cartridges provide high-quality sound for vinyl DJs — offering the features of a DJ cartridge but with a hi-fi sound — making them suited to the stage and club DJ who prioritises sound quality. A VM dual magnet construction and durable, robust design are combined with a carbon fibre-reinforced ABS cantilever and nylon wire suspension for precise tracking. The cartridge is compatible with the ATN-XP5 and ATN-XP7 replacement styli for an upgrade, and is also available as a single cartridge (AT-XP3) and replacement stylus (ATN-XP3).

The XP series electromagnetic engine-body is fully compatible with all replacement styli of the VM95 Series and delivers more output voltage than a VM95 Series cartridge, improving compatibility with the phono inputs of professional DJ mixers. The VM95 Series engine-body is in turn compatible with the three replacement styli of the AT-XP series DJ cartridge, though the XP series body delivers the higher output. The suspension design and compliance of the XP series styli have been optimised for intensive DJing, including manual cueing and back-cueing, whereas the VM95 Series suspension and compliances are designed for optimum audiophile reproduction. Typical tracking force with XP series styli is three grams, as opposed to two grams for VM95 Series styli.

Ideal For

Stage and club DJ use on vinyl, including manual cueing and back-cueing, for DJs who want a robust cartridge with hi-fi sound quality, supplied ready to fit on its headshell.

Features

• Audiophile DJ cartridge AT-XP3 pre-mounted on the AT-HS6BK headshell
• VM dual magnet construction
• Durable, robust design for high-quality specialist DJ playback
• Carbon fibre-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
• Compatible with the replacement styli ATN-XP5 and ATN-XP7 for an upgrade
• Available as a single cartridge (AT-XP3), replacement stylus (ATN-XP3) and as a headshell bundle with the AT-HS6BK headshell (AT-XP3/H)
• XP series electromagnetic engine-body is fully compatible with all VM95 Series replacement styli and delivers more output voltage than a VM95 Series cartridge for better compatibility with professional DJ mixer phono inputs
• XP series stylus suspension design and compliance optimised for intensive DJing, including manual cueing and back-cueing

Specifications

• Type: Dual Moving Magnet (VM)
• Frequency Response: 20 to 18,000 Hz
• Channel Separation: 20 dB (1 kHz)
• Vertical Tracking Angle: 20°
• Vertical Tracking Force: 2.0 to 4.0 g (3 g standard)
• Stylus Construction: Bonded Round Shank
• Recommended Load Impedance: 47,000 Ω
• Recommended Load Capacitance: 100–200 pF
• Coil Impedance: 6,700 ohms (1 kHz)
• Coil Inductance: 550 mH (1 kHz)
• Output Voltage: 5.5 mV (1 kHz, 5 cm/sec.)
• Output Channel Balance: 2.0 dB (1 kHz)
• Stylus Shape: Conical
• Stylus Size: 0.6 mil
• Cantilever: Carbon reinforced ABS
• Static Compliance: 20 × 10⁻⁶ cm/dyne
• Dynamic Compliance: 6.0 × 10⁻⁶ cm/dyne (100 Hz)
• Mounting: Half-inch
• Cartridge Weight: 15.6 g
• Dimensions (H × W × D): 21.2 × 21.4 × 62.4 mm
• Replacement Stylus: ATN-XP3

Product Code: AT-XP3/H
