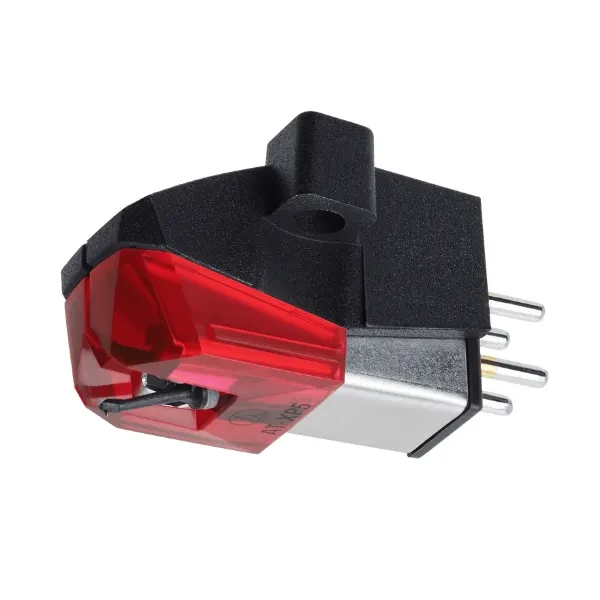

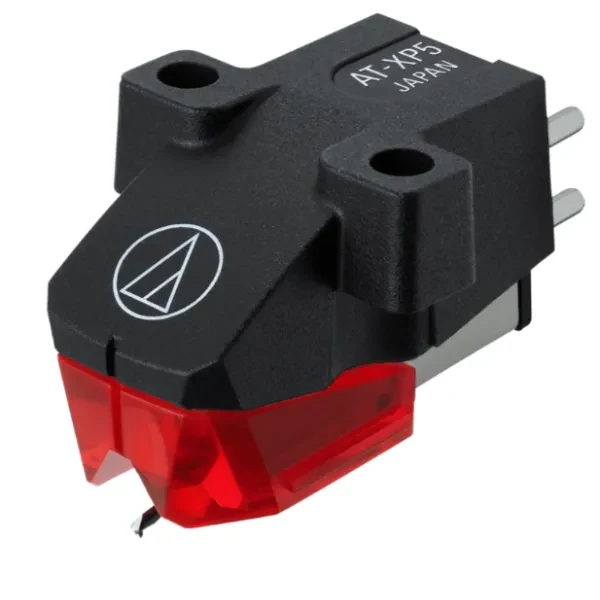

The AT-XP5 is specially designed for the needs of DJs. The cartridge features a highly rigid polyphenylene sulphide (PPS)/glass fibre body and a tracking force of 2 to 4 grams. It offers a powerful output level of 5.5 mV, and its 0.3 × 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. The cartridge is also specifically designed to provide maximum visibility of the stylus tip, and its signal output level and output impedance characteristics are adapted to professional DJ mixing boards, bringing an audiophile experience to the DJing environment.

Ideal For

DJ venue applications where hi-fi audio performance and a robust, durable cartridge are required, including setups using professional DJ mixing boards.

Features

• Durable design for high-quality specialist DJ playback
• Designed for DJ venue applications for their hi-fi audio performance

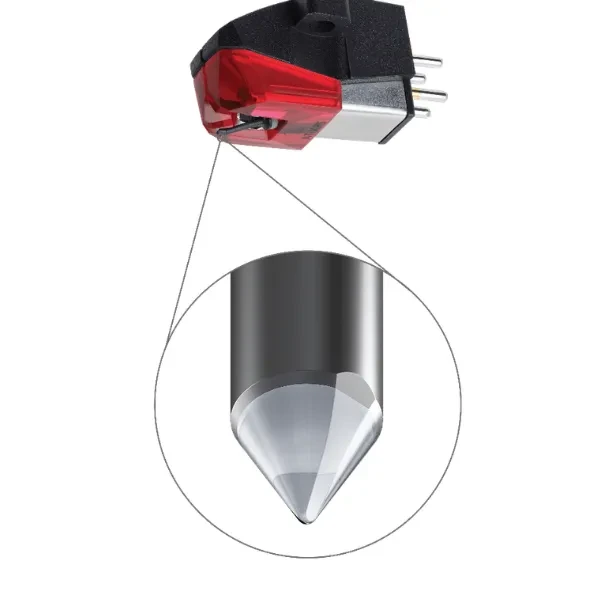

• VM dual magnet cartridge with 0.3 × 0.7 mil elliptical bonded stylus
• Audiophile experience associated with the DJing environment, with signal output level and output impedance characteristics adapted to professional DJ mixing boards
• Carbon ABS cantilever
• Great visibility of stylus tip for DJ use
• High-rigidity, low-resonance cartridge housing
• Replacement Stylus: ATN-XP5

Specifications

• Type: VM Dual Magnet
• Frequency Response: 20 to 18,000 Hz
• Channel Separation: 20 dB (1 kHz)
• Vertical Tracking Angle: 20°
• Vertical Tracking Force: 2.0 to 4.0 g (3 g standard)
• Recommended Load Impedance: 47,000 ohms
• Recommended Load Capacitance: 100–200 pF
• Coil Inductance: 1.0 H (1 kHz)
• Output Voltage: 5.5 mV (1 kHz, 5 cm/sec.)
• Output Channel Balance: 2.0 dB
• Stylus Shape: Elliptical
• Stylus Size: 0.3 × 0.7 mil
• Cantilever: Carbon Fibre Reinforced ABS
• Static Compliance: 20 × 10⁻⁶ cm/dyne
• Dynamic Compliance: 6.0 × 10⁻⁶ cm/dyne (100 Hz)
• Mounting: Half-inch
• Dimensions (H × W × D): 17.2 × 17.8 × 28.3 mm
• Weight: 6.2 g
• Replacement Stylus: ATN-XP5
• Accessories Included: Cartridge installation slotted screws — 11.0 mm × 2 and 8.0 mm × 2; washer × 2; round nut × 2; non-magnetic screwdriver × 1

Product Code: AT-XP5
