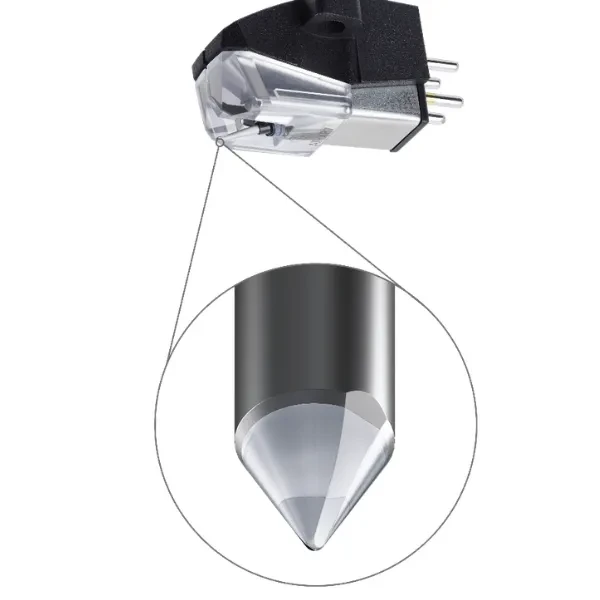

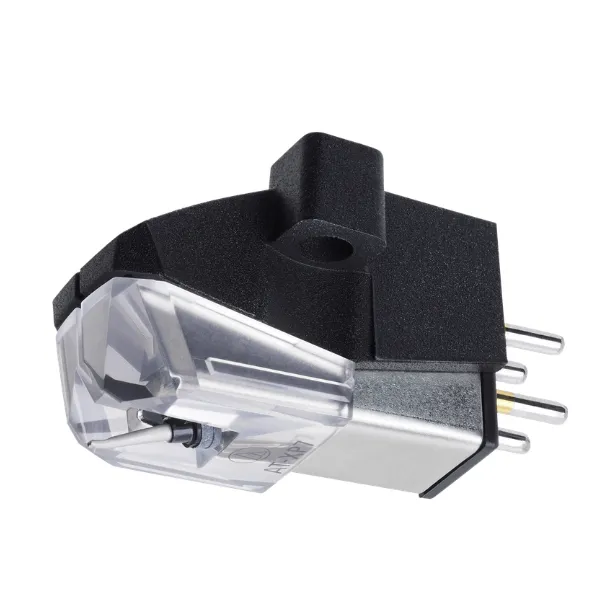

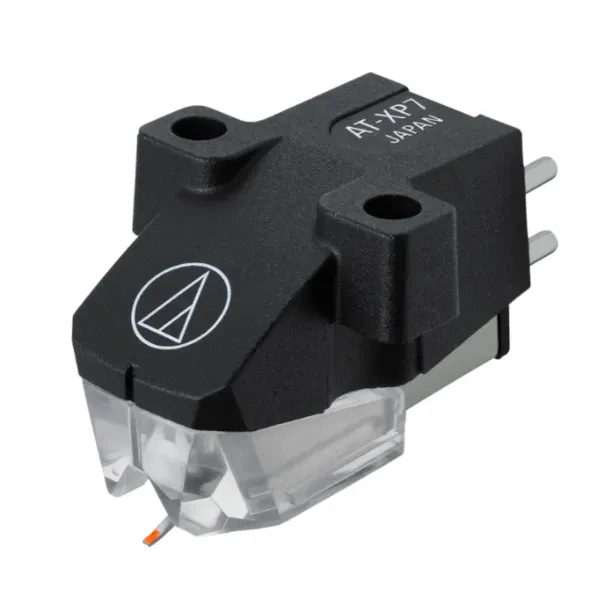

The AT-XP7 is a dual moving magnet stereo DJ cartridge featuring a high-rigidity polyphenylene sulfide (PPS)/glass fibre body and a 0.3 × 0.7 mil elliptical bonded stylus on a tapered aluminium cantilever. A stainless wire suspension contributes to expressive high-frequency reproduction, while the low-resonance housing helps maintain accurate tracking across the groove. With an output level of 6.0 mV and output impedance characteristics tailored to professional DJ mixing boards, the AT-XP7 is designed to integrate cleanly with club and venue audio setups. The cartridge body is specifically designed to maximise visibility of the stylus tip for precise positioning in low-light environments.

Ideal For

Suited to stage and club DJs who require a robust, high-output cartridge with professional-grade signal characteristics and the accurate groove tracking of an elliptical stylus.

Features

• VM dual moving magnet construction
• 0.3 × 0.7 mil elliptical bonded stylus
• Tapered aluminium cantilever
• Stainless wire suspension for expressive high-frequency performance
• High-rigidity, low-resonance PPS/glass fibre cartridge body
• Designed for maximum stylus tip visibility in dark environments
• Output level and impedance characteristics suited to professional DJ mixing boards
• Tracking force range: 2.0 to 4.0 g (3.0 g standard)
• Half-inch mount
• Replacement stylus: ATN-XP7

Specifications

• Cartridge Type: VM dual moving magnet
• Stylus Construction: Bonded round shank
• Stylus Shape: Elliptical
• Stylus Size: 0.3 × 0.7 mil
• Cantilever: Tapered aluminium pipe
• Frequency Response: 20 to 20,000 Hz
• Output Voltage: 6.0 mV (at 1 kHz, 5 cm/sec)
• Channel Separation: 22 dB (1 kHz)
• Coil Inductance: 1.0 H (1 kHz)
• Recommended Load Impedance: 47,000 Ω
• Recommended Load Capacitance: 100–200 pF
• Vertical Tracking Angle: 20 degrees
• Vertical Tracking Force: 2.0 to 4.0 g (3.0 g standard)
• Static Compliance: 20 × 10⁻⁶ cm/dyne
• Dynamic Compliance: 8.0 × 10⁻⁶ cm/dyne (100 Hz)
• Mounting: Half-inch
• Cartridge Weight: 6.2 g
• Dimensions (H × W × D): 17.2 × 17.8 × 28.3 mm
• Replacement Stylus: ATN-XP7

Product Code: AT-XP7
