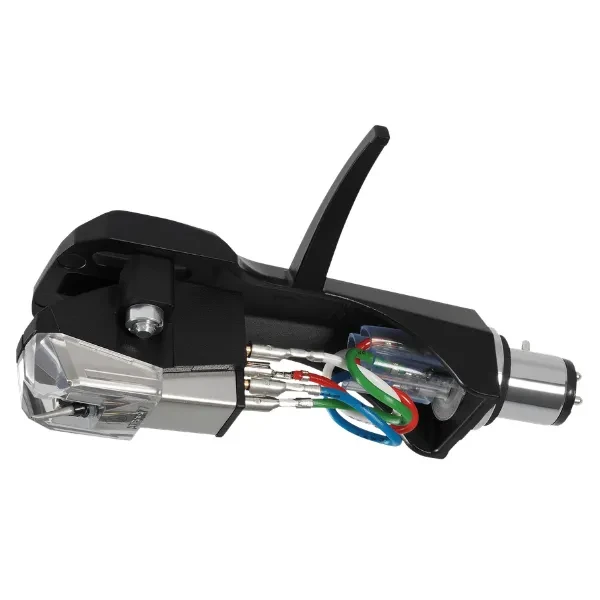

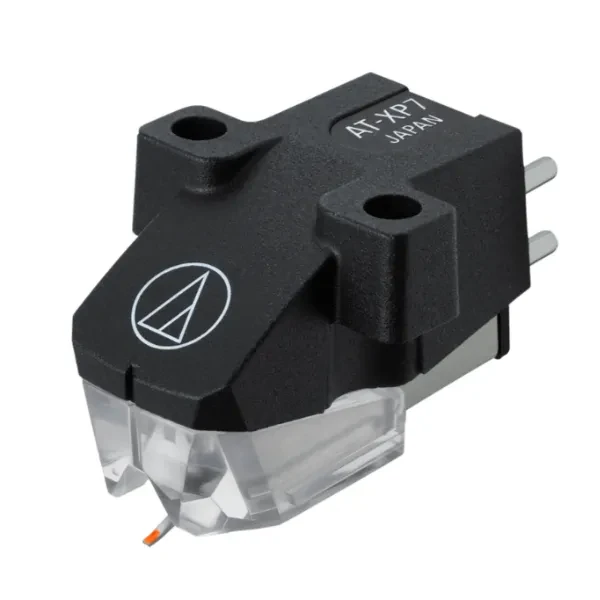

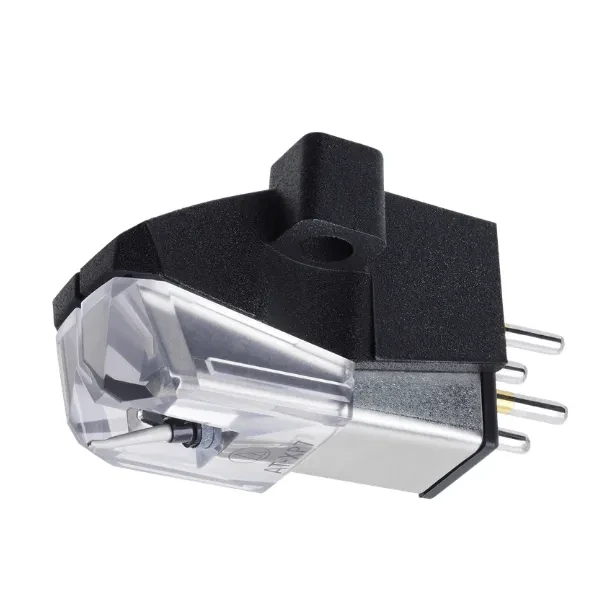

The AT-XP7/H is the AT-XP7 DJ cartridge supplied pre-mounted on the AT-HS6BK aluminium die-cast headshell, ready for fitting to any standard half-inch mount tonearm. The VM dual magnet construction is paired with a tapered aluminium cantilever and 0.3 × 0.7 mil elliptical bonded stylus, delivering improved frequency and phase response and reduced distortion compared to a conical stylus. The output level and impedance characteristics are tailored to professional DJ mixing boards, and the XP Series electromagnetic engine body delivers higher output voltage than VM95 Series cartridges for improved compatibility with professional DJ mixer phono inputs. The cartridge is also cross-compatible with VM95 Series replacement styli, and with the ATN-XP3 and ATN-XP5 styli as upgrade options in addition to the standard ATN-XP7. The XP Series stylus suspension is specifically designed for intensive DJ use including manual and back-cueing.

Ideal For

Suited to stage and club DJs who want a ready-to-fit cartridge and headshell combination, with audiophile-quality elliptical stylus tracking and professional output characteristics for DJ mixer compatibility.

Features

• AT-XP7 cartridge pre-mounted on the AT-HS6BK 9 g aluminium die-cast headshell
• VM dual moving magnet construction

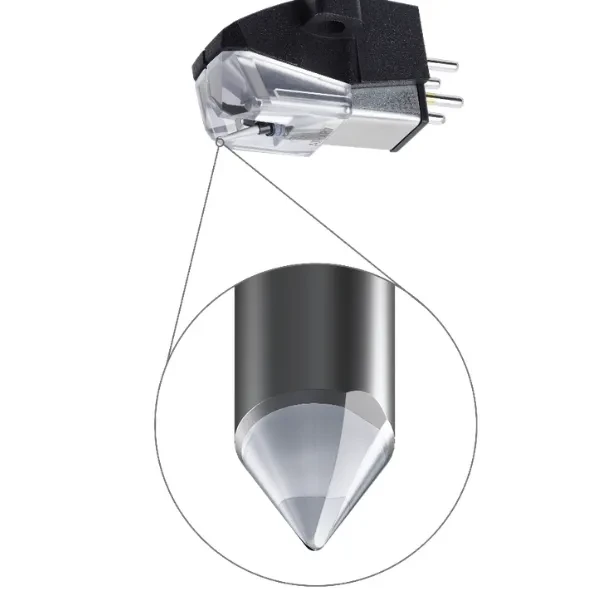

• 0.3 × 0.7 mil elliptical bonded stylus on tapered aluminium cantilever
• Higher output voltage than VM95 Series for improved compatibility with professional DJ mixer phono inputs
• XP Series stylus suspension optimised for intensive DJ use including manual and back-cueing
• Compatible with ATN-XP3, ATN-XP5, and ATN-XP7 replacement styli
• Compatible with VM95 Series replacement styli
• Durable, robust design for specialist DJ playback
• Half-inch mount

Specifications

• Cartridge Type: VM dual moving magnet
• Stylus Construction: Bonded round shank
• Stylus Shape: Elliptical
• Stylus Size: 0.3 × 0.7 mil
• Cantilever: Tapered aluminium pipe
• Frequency Response: 20 to 20,000 Hz
• Output Voltage: 6.0 mV (at 1 kHz, 5 cm/sec)
• Channel Separation: 22 dB (1 kHz)
• Output Channel Balance: 2.0 dB (1 kHz)
• Coil Impedance: 6,700 ohms (1 kHz)
• Coil Inductance: 1.0 H (1 kHz)
• Recommended Load Impedance: 47,000 Ω
• Recommended Load Capacitance: 100–200 pF
• Vertical Tracking Angle: 20 degrees
• Vertical Tracking Force: 2.0 to 4.0 g (3.0 g standard)
• Static Compliance: 20 × 10⁻⁶ cm/dyne
• Dynamic Compliance: 8.0 × 10⁻⁶ cm/dyne (100 Hz)
• Mounting: Half-inch
• Cartridge Weight: 15.6 g (including headshell)
• Dimensions (H × W × D): 21.2 × 21.4 × 62.4 mm
• Replacement Stylus: ATN-XP7

Product Code: AT-XP7/H
