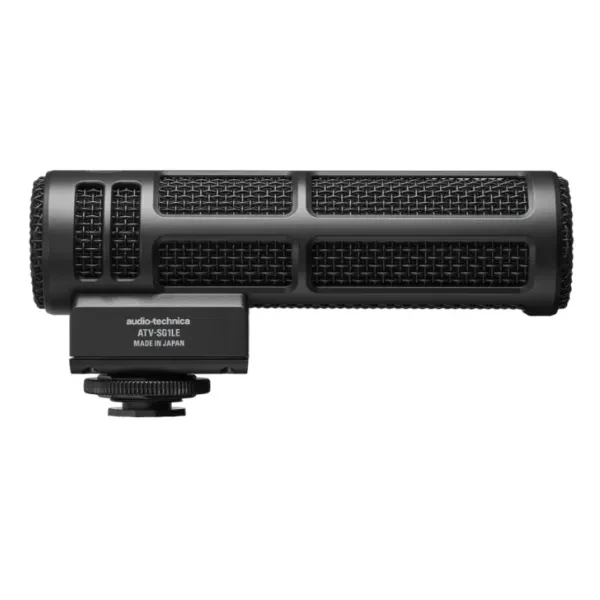

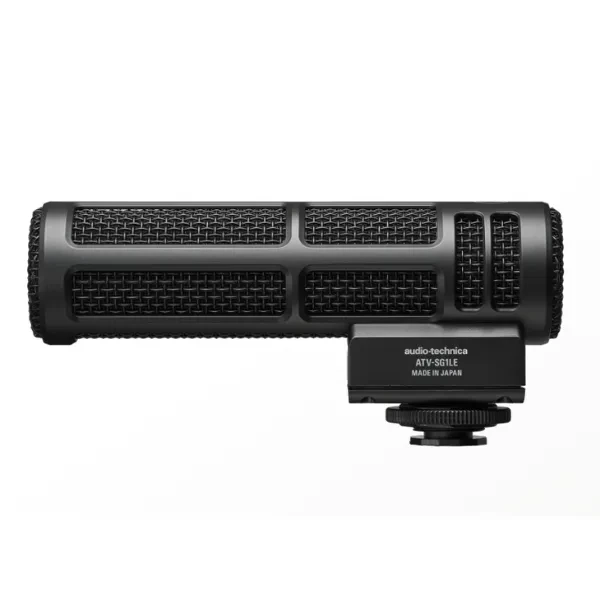

The ATV-SG1LE is a compact plug-in powered on-camera shotgun condenser microphone designed for content creators and videographers using DSLR, mirrorless SLR, or other cameras. A newly designed 14 mm large-diameter diaphragm delivers high sensitivity and low noise for natural, high-resolution audio capture, while the highly directional 100 mm acoustic tube — the same tube used in the flagship ATV-SG1 — keeps pickup focused on the sound source and reduces unwanted background noise. The integrated shock mount dissipates handling noise from camera movement and vibrations, and Audio-Technica's patented noise-immunity technology provides resistance to hum and RF interference from smartphones and other electronic devices.

The ATV-SG1LE is powered directly by plug-in power from the camera, eliminating the need for batteries. A 12-sided shoe mounting plate allows the microphone to be rotated in 30-degree increments for flexible horizontal positioning. A coiled camera cable and wind muff are included. Designed and manufactured in Japan.

Ideal For

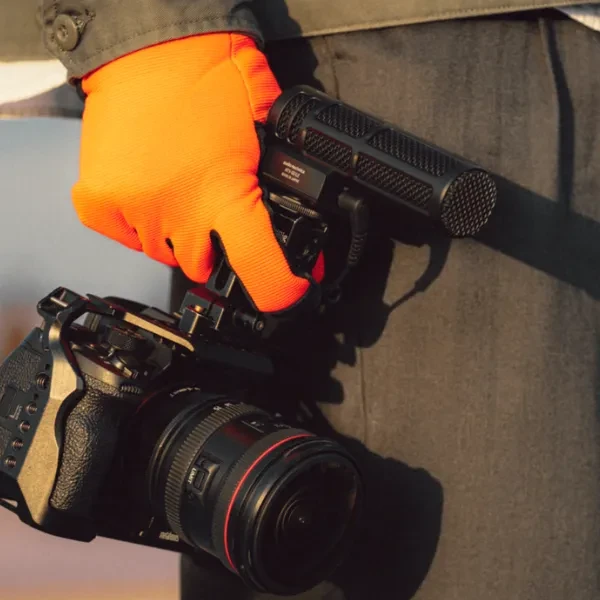

Suited to content creators, vloggers, and YouTubers who require a compact, easy-to-use on-camera shotgun microphone for DSLR or mirrorless camera use without the need for batteries or complex controls.

Features

• Fixed-charge back plate permanently polarised condenser element
• 14 mm large-diameter diaphragm for high sensitivity and low noise
• Highly directional 100 mm acoustic tube — same tube as flagship ATV-SG1
• Integrated shock mount to reduce handling noise
• Patented Audio-Technica noise-immunity technology for resistance to RF interference from smartphones and electronic devices
• Plug-in powered — no batteries required
• 12-sided shoe mounting plate with 30-degree increment rotation for flexible positioning

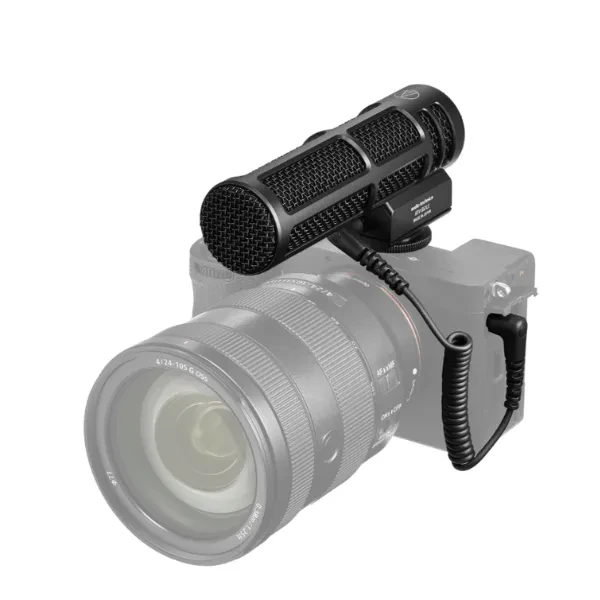

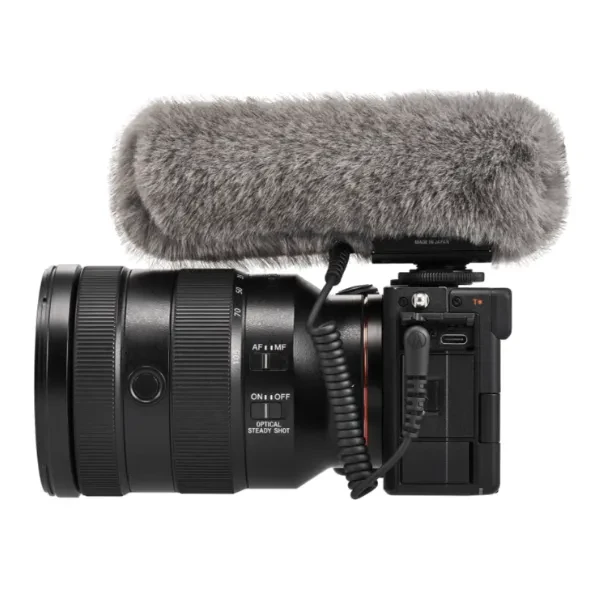

• Includes coiled camera cable (approx. 5 cm; extends to approx. 50 cm, 3.5 mm stereo mini-plug both ends) and wind muff
• Designed and manufactured in Japan

Specifications

• Element: Fixed-charge back plate, permanently polarised condenser
• Polar Pattern: Line + gradient
• Frequency Response: 20 to 20,000 Hz
• Open Circuit Sensitivity: -38 dBV
• Maximum Input Sound Level: 114 dB SPL (1 kHz, THD 3%)
• Dynamic Range: 102.5 dB (1 kHz at Max SPL)
• Signal-to-Noise Ratio: 82.5 dB (1 kHz at 1 Pa, A-weighted)
• Power Supply: Plug-in power (1.5 V to 5.0 V)

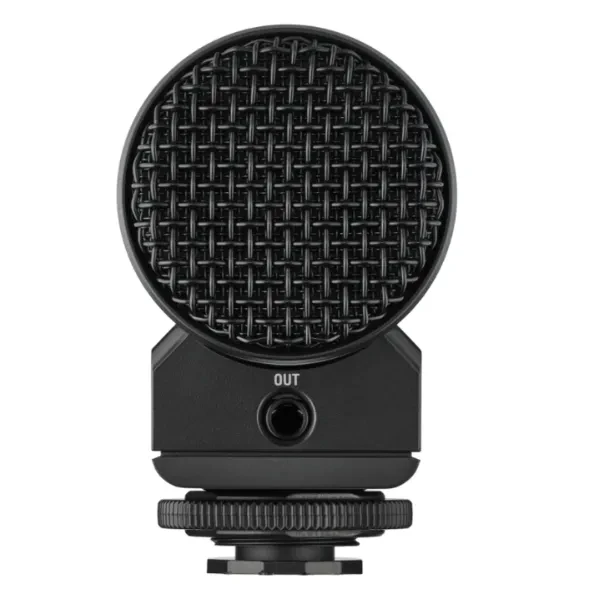

• Main Output: 3.5 mm (1/8") stereo mini-jack
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 60°C, 10%–90% RH (without condensation)
• Dimensions: 127.1 mm long × 35 mm maximum body diameter × 59 mm height
• Weight: Approx. 100 g (3.5 oz)

Product Code: ATV-SG1LE
