The BT5963 is a CCTV ceiling mount designed for a small to medium-sized dome security camera and a small, tilted flat screen display. Available with a 1 or 2 metre ceiling drop, the BT5963 features integrated cable management allowing cables to run through the centre of the pole and out through either the top or side of the ceiling mount, ensuring finished installations are neat and tidy. For longer drops, the pole length can be extended with a joiner (BT5924) and additional poles (BT5935) from the System V Range, whilst accessories such as a flat screen can be added with the use of a ø38mm accessory collar (BT5952) and compatible screen mount.

Features

• Mounts a dome camera and small flat screen to the ceiling
• Available in a choice of two different drop lengths

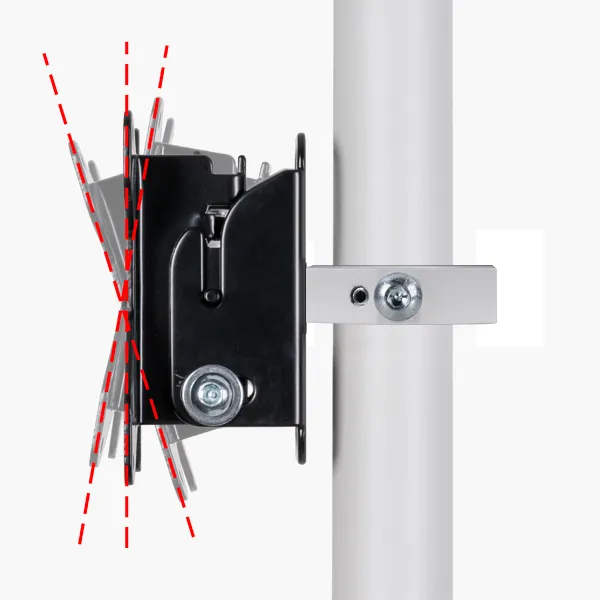

• Easy tilt adjustment of screen
• Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop
• Safety bolts ensure pole and mount are securely joined
• Integrated cable management allows cables to pass through the centre of the pole to a screen and out through the top or side of the ceiling mount

Specifications

• Recommended screen size: up to 28" (71cm)
• Max. screen load: 20kg (44lbs)
• Max. camera load: 5kg (11lbs)
• Tilt of screen: +17 / -10°
• VESA® screen compatibility: up to 100 x 100
• BT5963-FD100 pole length: 1036mm (40.8")
• Camera fixing dimensions: 51mm (2") - 127.5mm (5")
• Colour: White

Product Code: BT5963-FD100/W
