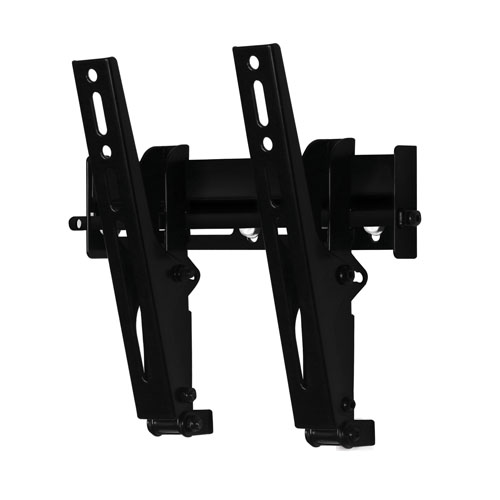

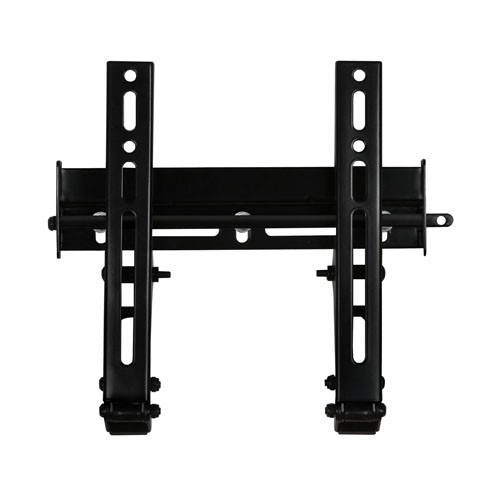

B-Tech BTV501 Ventry Flat Screen Wall Mount with Tilt

• Designed for screens up to 42” (107cm) / 40kg (88lbs)
• Suitable for VESA and non-VESA mounting patterns
• Mounts screen only 44mm (1.73”) from wall
• 5 fixed tilt positions up to +15°
• Suitable for concrete, brick or stud walls up to 10”
• Post-installation screen alignment
• Includes locking bar for secure installation
• Simple 'hook-on' installation with all mounting hardware included

Specifications

• Screen Size: up to 42”
• Max. Weight: 40kg (88lbs)
• Dist. From Wall: 44mm (1.73”)
• Tilt: +15°
• VESA Compatibility: 50 x 50, 75 x 75, 100 x 100, 200 x 100, 200 x 200
• Max Distance between Fixings: H: 225mm (8.6”)  V: 200mm (7.9”)

Product Code: BTV501
