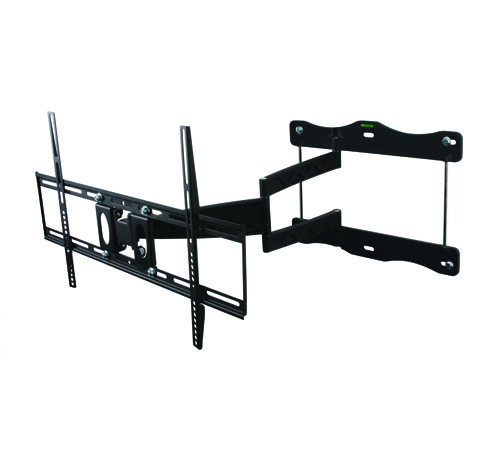

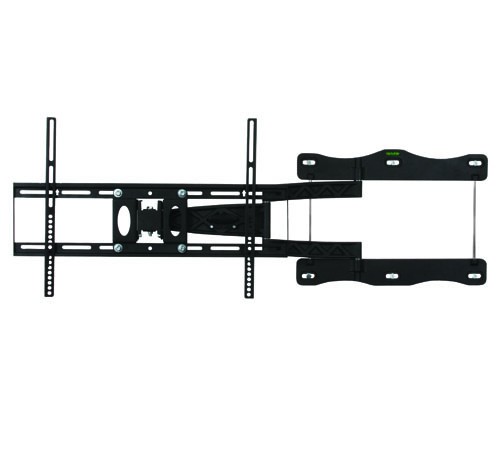

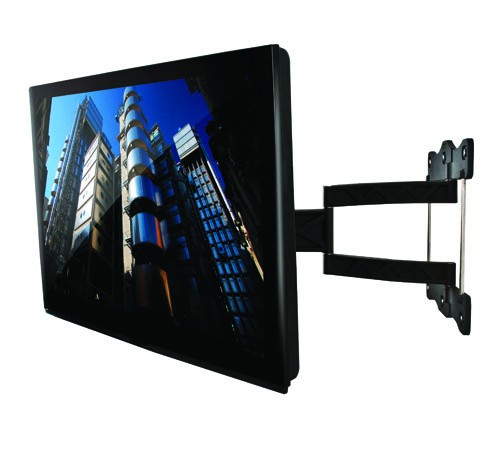

B-Tech BTV514 Ventry Ultra-Slim Double Arm Wall Mount with Tilt and Swivel

• Designed for flat screens up to 52” (132cm) / 25kg (55lbs)
• Fits screens with VESA and non-VESA mounting patterns up to 600 x 400mm
• Features +/-10° tilt and 180° swivel
• Integrated spirit level cable management
• Quick and simple 3 step installation
• All necessary fixings and mounting hardware included

Specifications

• Screen size: up to 52” (132cm)
• Max. weight: 25kg (55lbs)
• Dist. from wall: Min:35mm (1.4") Max: 535mm (21.1")
• VESA compatibility:
  75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 200mm,
  300 x 300mm, 400 x 300mm, 400 x 400mm, 600 x 400mm
• Maximum fixing hole distances on rear of screen:
  Horizontal:600mm /  Vertical: 400mm
• Tilt: +/-10°
• Swivel: 180°

Product Code: BTV514
