Antiference Clear Flow wireless networking products are a versatile range of WiFi devices for creating and extending wireless networks. They're programmable via onboard software and are smart device compatible. Available as ceiling & in-wall AP devices plus point to point bridge extenders.

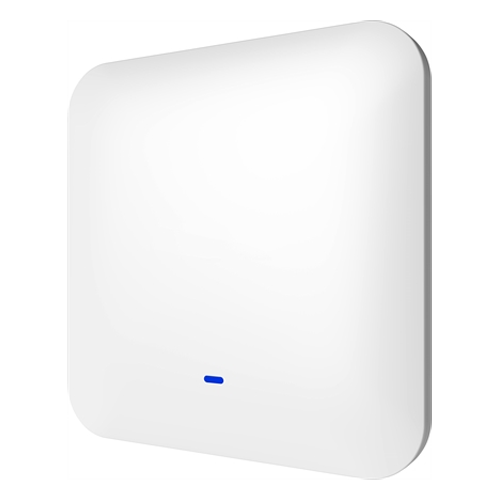

Clear Flow CF-E385AC - Air PROV2, 2200Mbps 11AC 2.4/5GHz Dual Frequency Wireless Ceiling Indoor Access Point

Features:

• Qualcomm Chipset
• Open WRT OS
• Wifi Transfer Tool
• Watchdog

Technical Specifications:

• Chipset: Qualcomm QCA9558 +QCA9880+AR8035, 720MHz CPU
• Ram: DDR2 256MB; Flash: 16MB
• PA Chip: 2.4G SE2576L, 5.8G SE5003L1-R
• Built-in Watchdog Chipset
• Built-in 6*3dBi Antenna
• 2.4GHz: 450Mbps, 5GHz: 1300Mbps
• IP31 rating
• MTBF>250000H

RF Parameters:

• Output Power (Max): 500mW (27dBm)
• Receiving Sensitivity (Max): -96dBm
• Frequency: 802.11ac/n/a: 5.18GHz - 5.825GHz, 802.11b/g/n: 2.412GHz - 2.4835GHz

Modulation Mode:

• DSSS: DBPSK@1Mbps, DQPSK @2Mbps, CCK@5.5/11Mbps
• OFDM: BPSK@6/9Mbps, QPSK @12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
• MIMO-OFDM (11n): MCS 0-23
• MIMO-OFDM (11ac): MCS 0-29

Transmission Rate:

• 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
• 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
• 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
• 1ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM

Physical Ports:

• 1* 10/1000Mbps WAN RJ45 Ethernet port, Support POE Power Supply
• 1* RESET / WPS Button
• Three Colors Indicator

Power Supply:

• Power Supply: IEEE802.3at POE Power Supply (0-100m)
• Power Adapter: 48V 0.5A POE Power Adapter (Configured)
• <24W

Installation:

• Ceiling-mounted / Wall-mounted
• Plastic Case (Imported ABS Material)
• Size: 220*220*45mm
• Weight: 0.38Kg

Working Environment:

• Working Temperature: -10 °C ~ 65 °C
• Storage Temperature: -40 °C ~ 70 °C
• Operation Humidity: 10% ~ 90% RH Non-condensing
• Storage Humidity: 5% ~ 90% RH Non-condensing

Product Code: CF-E385AC
