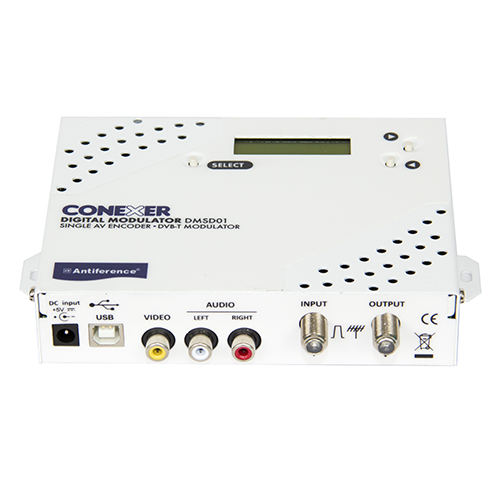

CONEXOR DMSD01 Single Input DVB-T Modulator

This Conexer™ DVB-T modulator converts any composite AV source (scart) into a DVB-T multiplex (digital channel) which any Freeview™ TV or STB can tune to. The generated channel appears in the EPG as a normal digital terrestrial channel. It is programmable via Windows based USB software which is downloadable from the 'downloads' tab on the product page of the Antiference website. This model also features an LCD screen and is programmable via the front panel.

• Single input
• Channel name edit, LCN (logical channel numbering allowing uswer definded EPG location)
• VHF/UHF band output
• Adjustable output gain control

Input

• Video - CVBS
• Input Level - 0.7-1.4Vpp
• Impedance - 75ohm
• Standard - PAL/NTSC
• Audio Input - 0.5-2.5Vpp

Compression

• Video - MPEG2
• Video Bitrate - 5-12Mbits/s
• Audio - MPEG1, Layer II
• Audio Bitrate - 128, 160, 192, 224, 256, 320, 384 Kbit/s

DVB Processing

• Table Insertion - PAT, PMT, SDT, NIT
• Configuration - CH name, SID, LCN, Net name, TSID, ONID, NID, NIT, PID PMT, Video & Audio PID

Output

• DVB-T - 1 channel
• Carriers-Bandwidth-MER - 2K/8K - 6/7/8MHz - >35dB
• Frequency-Output Level - 47-862MHz - >80dBµV (0/-20dB)
• Insertion Loss -  >2dB
• Constellation - QPSK/16QAM/64QAM
• FEC - 1/2, 2/3, 3/4, 5/6, 7/8
• Guard Interval - 1/4, 1/8, 1/16, 1/32

Power Supply Included - Adaptor

• Input  - 100-240V/0.5A/50-60Hz
• Output - 5V/4A

Dimentions

• HxLxW (mm) - 35x160x110
• Weight - 1.5kg

Product Code: DMSD01
