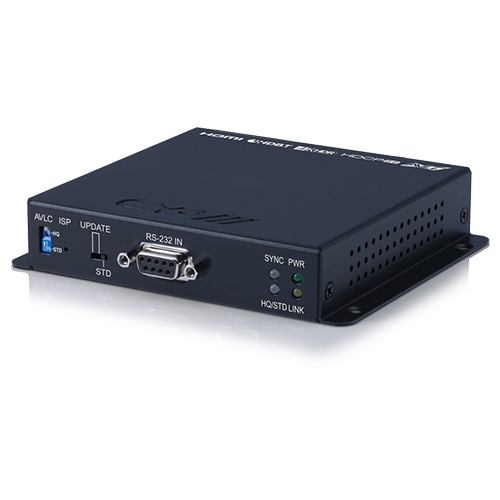

CYP 70m HDBaseT™ HDR Transmitter (4K, HDCP2.2, PoH, 18Gbps)

£x.xx

Manufacturer: CYP

Login to view price

Product Information

​The new PUV-1710LTX-AVLC Transmitter enables video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision, to be transmitted along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) signals up to a distance of 70m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 70m.

Despite the 10.2Gbps limitation of HDBaseT technology, this groundbreaking product enables data rates of up to 18Gbps to be transmitted using AVLC (Adaptive Visually Lossless Compression) Technology. The transmitter enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be extended to a compatible receiver. The result is a perfect 4K 6G  visually lossless image delivered to the display screen.



Features:

  • Supported HDBaseT feature set: HD Video & Audio, 48V PoH, and Control (Bi-directional IR/RS-232 pass-through)
  • Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input
  • AVLC (Adaptive Visually Lossless Compression)
  • AVLC Features manual selection between High Quality and Standard compression (Useful for longer cable runs)
  • Supports 10-bit and 12-bit HDR (High Dynamic Range)
  • Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
  • Supports Deep Colour input and output up to 12-bit
  • Supports CEC Bypass
  • 4K 3G Timings and 1080p up-to 70 Metres, 4K 6G Timings upto 35 Metres
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • Supports 3D signals



Specifications:

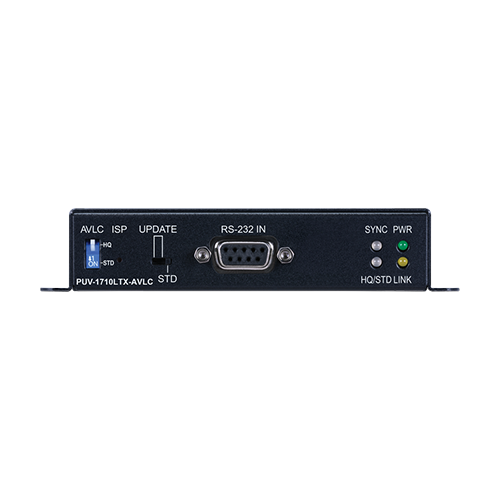

  • Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 9pin Dsub [1x RS-232 Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

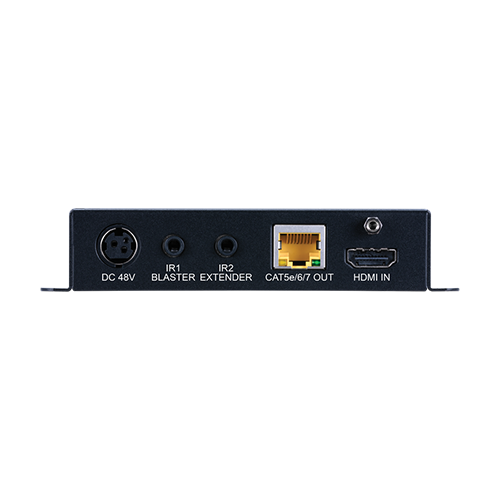

  • Outputs: 1x RJ45 [1x HDBaseT HDMI & Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
  • PSU:    48V/0.83A
  • Dimensions: 116mm [W] x 128mm [D] x 25mm [H]
  • Net Weight: 360g
  • Gross Weight: 1310g



CYPNEWIN

Product Code: PUV-1710LTX-AVLC
