The CYP EL-21PIP is an advanced 2-way HDMI switch with integrated multi-view (Picture-in-Picture) technology. This plug-and-play solution offers advanced control and display options for integrating 2 sources onto a single display, providing a cost-effective solution for combining sources within any commercial or residential AV installation.

Featuring integrated PiP and multiview technology, the EL-21PIP allows two HDMI sources to be displayed simultaneously on a single screen. Multiple display modes are available, including PiP, side-by-side, and free positioning, providing complete control over how content is viewed. Full HD 1080p resolution is supported, alongside an analogue audio breakout port for stereo audio extraction.

Ideal For

Suited to commercial and residential AV installations requiring a cost-effective way to display two HDMI sources simultaneously on a single screen, with flexible window arrangement and audio extraction.

Features

• 3-way multiview window configuration
• Free positioning mode
• Bitmap logo upload and display
• Input supports HD resolutions up to 4K@30Hz (4:4:4, 8-bit)
• Output supports HD resolutions up to 1080p@60Hz
• Chromakey support
• OSD, Web GUI, Telnet, RS-232, and IR remote control
• Direct trigger input (compatible with CR-TG1)
• De-embedded audio output
• RAX-600 compatible

Specifications

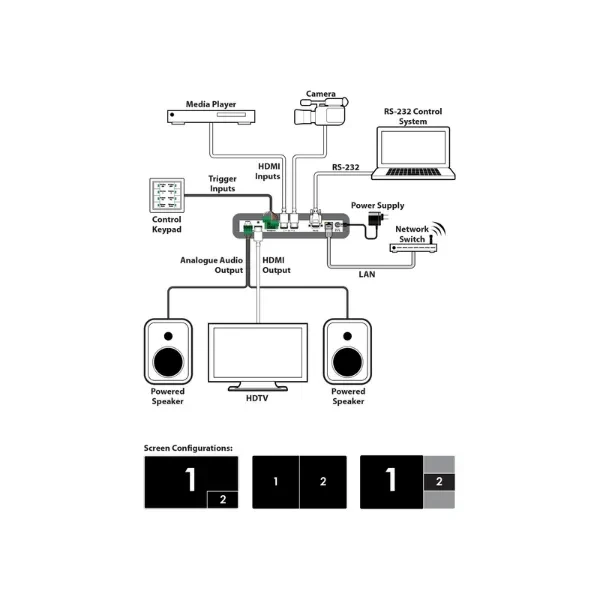

• Inputs: 2 × HDMI (Uncompressed AV and Data), 1 × Phoenix 10-Pin (8 × Trigger In), 1 × 3.5mm Stereo Mini-Jack (IR Receiver), 1 × 9-Pin D-Sub (RS-232 Data), 1 × RJ45 (IP Control)
• Outputs: 1 × HDMI (Uncompressed AV and Data), 1 × Phoenix 5-Pin (Analogue Stereo, Balanced or Unbalanced)
• Power Supply: 5V / 2.6A
• Dimensions (W × H × D): 231.5 × 25 × 108 mm
• Net Weight: 620g
• Gross Weight: 1.18kg

Product Code: EL-21PIP
