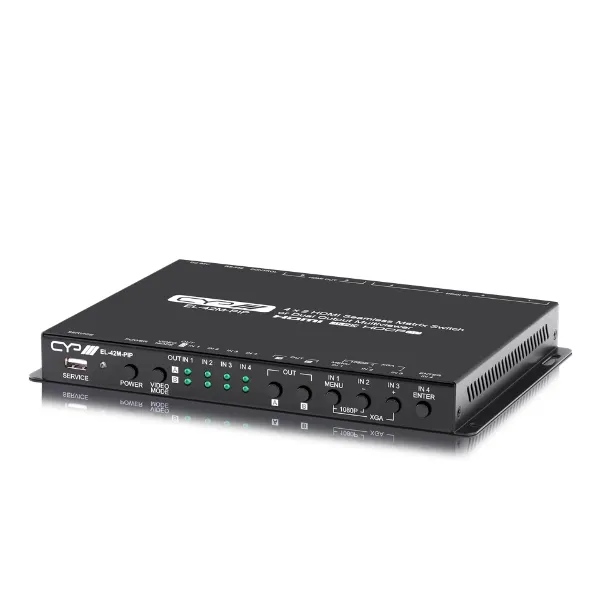

The CYP EL-42M-PIP is an advanced Picture-in-Picture (PIP) multi-view matrix designed for use across broadcast, live events, military, and medical applications. As CYP's most advanced PIP device, it features support for 4K HDR sources, enabling up to 4 sources to be viewed in multi-view mode via two mirrored HDMI outputs in a chosen configuration. Presets can be switched between, or the configuration changed live, via the onboard Web GUI.

The EL-42M-PIP can also be switched to Matrix mode, allowing seamless switching between source and screen for low-latency applications. Control is handled via front panel buttons, OSD, RS-232, IP Telnet, and the Web GUI.

Ideal For

Suited to broadcast, live event, military, and medical applications requiring flexible, high-quality 4K HDR picture-in-picture multi-viewing, or seamless matrix switching between sources and displays.

Features

• 4×2 4K HDR Picture-in-Picture multi-viewer
• Seamless source switching in Matrix mode
• Supports custom size, position, and settings of connected sources in PIP window mode
• RS-232, IR, Telnet, Web GUI, and push button control
• Individual source scaling and EDID management (internal or external)
• Independent audio source selection and routing in all modes

Specifications

• Inputs: 4 × HDMI (Uncompressed AV and Data), 1 × RJ45 (IP Control), 1 × 3.5mm Stereo Mini-Jack (RS-232), 1 × USB Type-A (Service Port Proprietary Data)
• Outputs: 2 × HDMI (Uncompressed AV and Data)
• Power Supply: 24V / 2.7A
• Dimensions (W × H × D): 231.5 × 25 × 158 mm
• Net Weight: 980g
• Gross Weight: 2.04kg

Product Code: EL-42M-PIP
