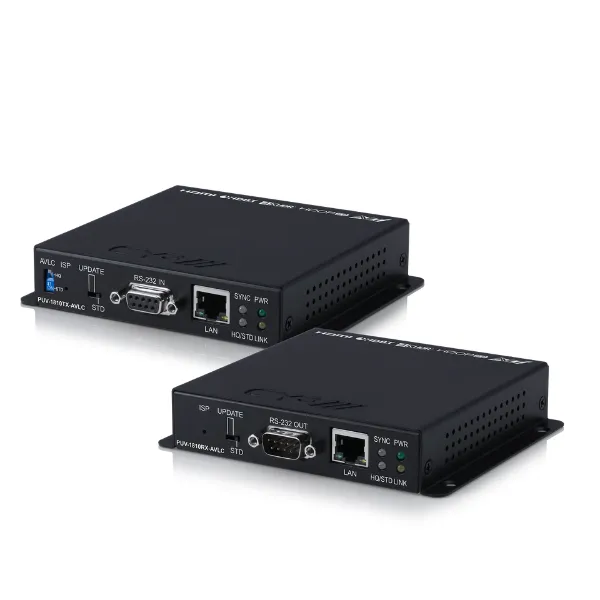

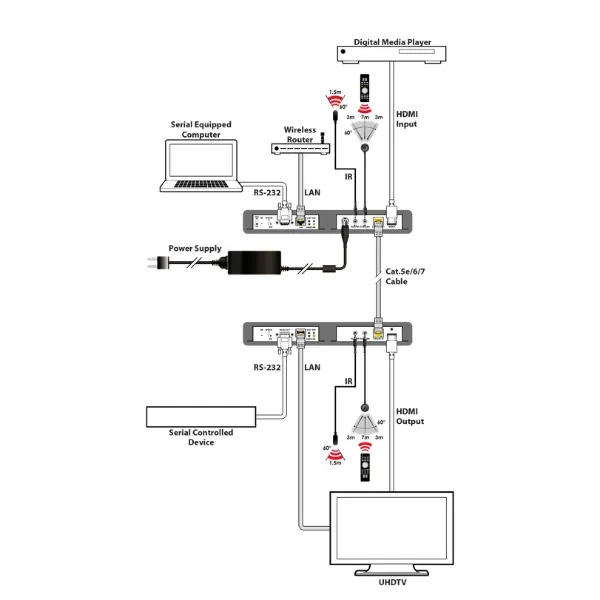

The PUV-1810TX-AVLC Transmitter and Receiver Kit enables video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision, to be transmitted along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) and LAN signals up to a distance of 70m (4K 60 4:4:4); 100m (4K 60 4:2:0). This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.

Despite the 10.2Gbps limitation of HDBaseT™ technology, this product enables data rates of up to 18Gbps to be transmitted using AVLC (Adaptive Visually Lossless Compression) Technology. The transmitter enables 4KUHD sources up to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (including Dolby Vision) to be extended to the receiver. The result is a 4K 6G visually lossless image delivered to the display screen.

Features

• HDBaseT 5-Play™ convergence: high-definition video and audio, 100BaseT ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass-through)
• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4 8-bit) video output
• AVLC (Adaptive Visually Lossless Compression)
• AVLC features manual selection between High Quality and Standard compression from the TX (useful for longer cable runs)
• Supports 10-bit and 12-bit HDR (High Dynamic Range)
• Supports output resolutions up to 4K@50/60Hz (4:4:4 8-bit)
• Supports Deep Colour input and output up to 12-bit
• Supports CEC bypass
• 4K 3G timings and 1080p up to 100 metres, 4K 6G timings up to 70 metres
• Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
• Supports 3D signals

Specifications

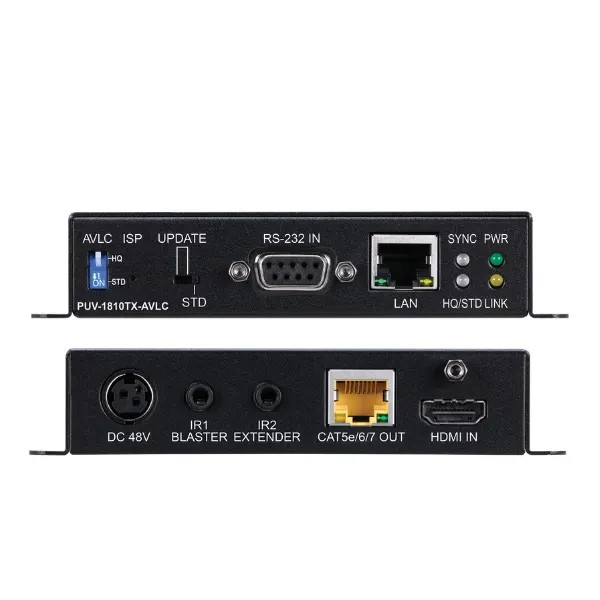

TX:

• Inputs: 1 × HDMI [HDMI Uncompressed AV and Data]; 1 × 9-pin Dsub [RS-232 Data]; 1 × 3.5mm Stereo mini-jack [Infra Red Receiver]; 1 × RJ45 [LAN Serving]
• Outputs: 1 × RJ45 [HDBaseT HDMI & Proprietary Data]; 1 × 3.5mm Stereo mini-jack [Infra Red Emitter]
• PSU: 48V/0.83A
• Dimensions: 128mm [W] × 25mm [H] × 108mm [D]
• Net Weight: 380g

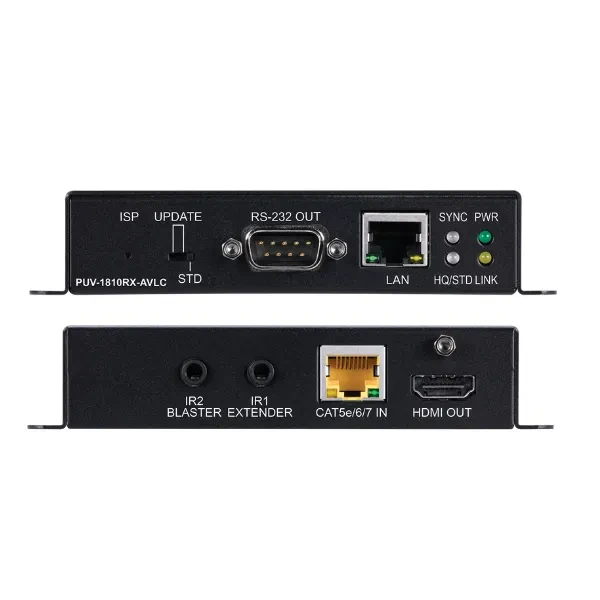

RX:

• Inputs: 1 × RJ45 [HDBaseT HDMI & Proprietary Data]; 1 × 3.5mm Stereo mini-jack [Infra Red Receiver]
• Outputs: 1 × HDMI [HDMI Uncompressed AV and Data]; 1 × 9-pin Dsub [RS-232 Data]; 1 × 3.5mm Stereo mini-jack [Infra Red Emitter]; 1 × RJ45 [LAN Serving]
• PSU: PoH
• Dimensions: 128mm [W] × 25mm [H] × 108mm [D]
• Net Weight: 380g
• Gross Weight: 1.84kg

Product Code: PUV-1810-AVLC-KIT
