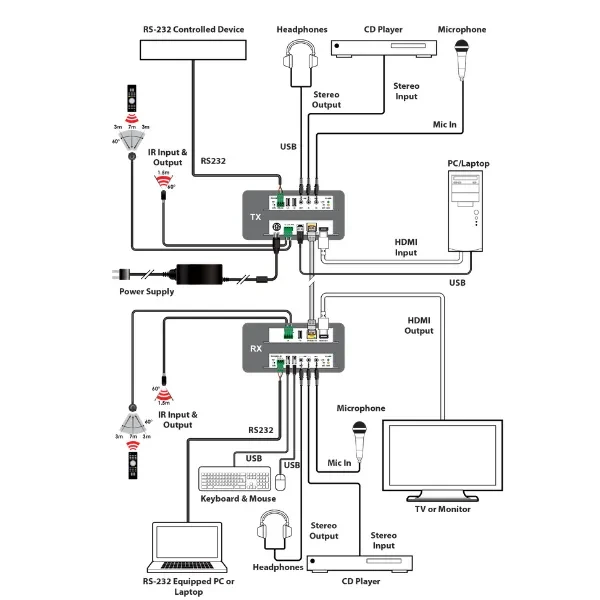

The PUV-2200PL-KIT HDMI over single CAT5e/6/7 Transmitter and Receiver Kit can send uncompressed audio/video, along with HD audio and USB, over a single run of CAT5e/6/7 cable at a distance up to 35 metres. This system also features analogue audio input/output and mic input for flexible audio options.

Multi-control interfaces are available which include IR, RS-232 and USB connection. This extender complies with advanced protocols of HDCP2.2 and HDMI 2.0, as well as supporting the legacy HDCP 1.x standards, and delivers all the benefits of HDBaseT 2 but in a lite version, more cost effective at a shorter CAT cable distance.

Features

• HDBaseT 2.0 compatible
• Supports UHD resolutions up to 3840×2160@60Hz (4:2:0, 8-bit) & 4096×2160@60Hz (4:2:0, 8-bit)
• Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
• HDMI 2.0 and DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant
• Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 35m
• Supports 16-bit Deep Colour up to 1080p@60Hz
• Supports standard 48V from Transmitter (PSE) to Receiver (PD)

Specifications

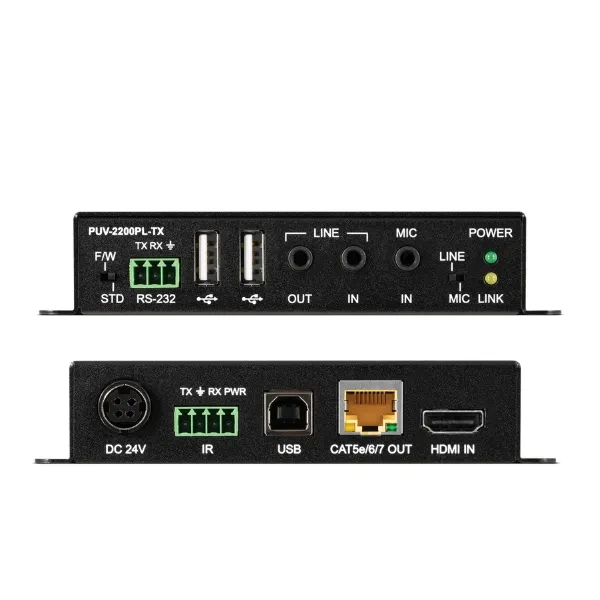

TX:

• Inputs: 1 × HDMI [HDMI Uncompressed AV and Data]; 1 × USB 3 Type B [USB Power & Data]; 1 × Phoenix (4 pin) [Shared IR I/O]; 1 × 3.5mm Stereo mini-jack [Analogue audio Stereo (L/R)]; 1 × 3.5mm Stereo mini-jack [Microphone]
• Outputs: 1 × RJ45 [HDBaseT HDMI & Proprietary Data]; 1 × Phoenix (3 pin) [RS-232]; 2 × USB Type A [USB Proprietary Data]; 1 × 3.5mm Stereo mini-jack [Analogue audio Stereo (L/R)]
• PSU: 24V/2.7A
• Dimensions: 128mm [W] x 25mm [H] x 108mm [D]
• Net Weight: 400g

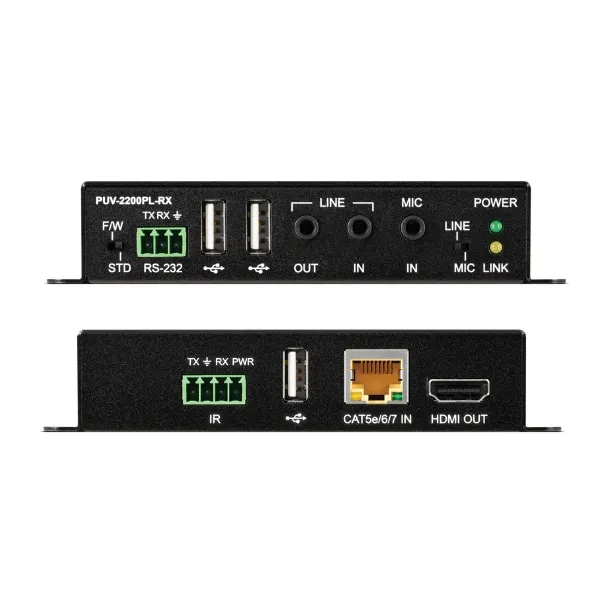

RX:

• Inputs: 1 × RJ45 [HDBaseT HDMI & Proprietary Data]; 1 × Phoenix (4 pin) [Shared IR I/O]; 1 × 3.5mm Stereo mini-jack [Analogue audio Stereo (L/R)]; 1 × 3.5mm Stereo mini-jack [Microphone]
• Outputs: 1 × HDMI [HDMI Uncompressed AV and Data]; 1 × Phoenix (3 pin) [RS-232]; 3 × USB Type A [USB Proprietary Data]; 1 × 3.5mm Stereo mini-jack [Analogue audio Stereo (L/R)]
• PSU: PoH
• Dimensions: 128mm [W] x 25mm [H] x 108mm [D]
• Net Weight: 400g
• Gross Weight: 2.16kg

Product Code: PUV-2200PL-KIT
