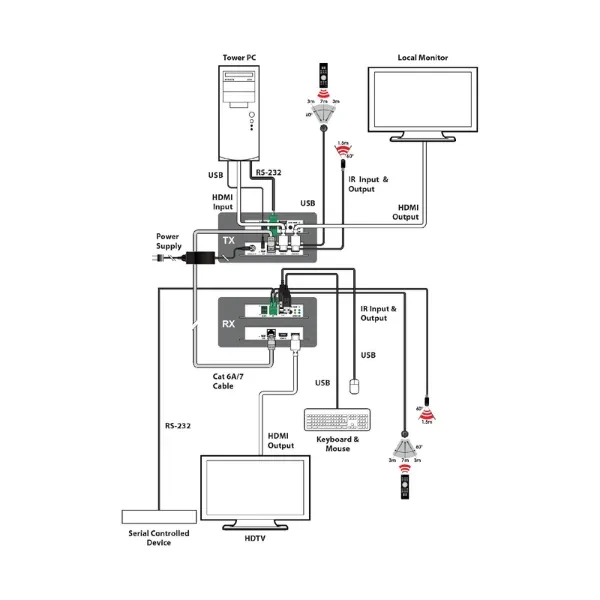

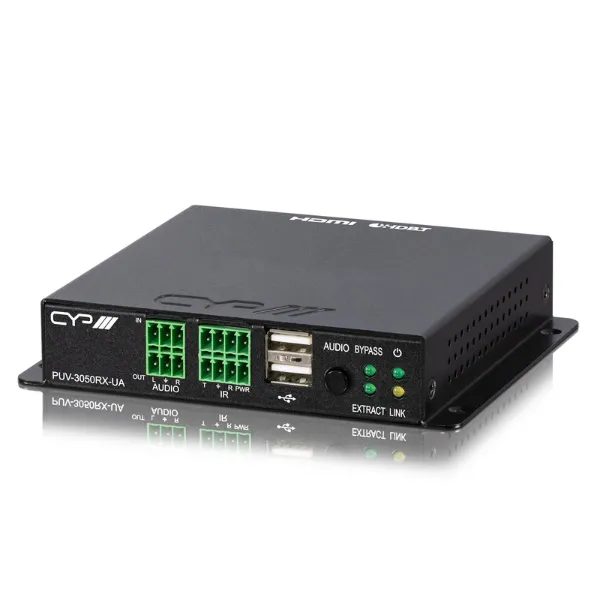

The PUV-3050RX-UA is part of the new generation of HDBaseT 3.0 technology. This receiver is capable of extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit or 4K HDR) video and HD audio, as well as control signals, via a single run of Cat.6a/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and USB 2.0.

USB connectivity allows extension of USB signals, ideal for uses such as KVM (keyboard and mouse) or touch / interactive displays and with USB2.0 support this connection allows for fast data transfer and expanded peripheral compatibility.

For added flexibility, this Receiver (when paired with a compatible Transmitter) supports bi-directional analogue audio.

This product is ideal for any scenario which needs uncompressed video and audio over distance, such as medical equipment, conference rooms, education, residential, and more.

Note: a compatible Transmitter is required — this listing is for the receiver unit only.

Features

• HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant
• HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
• Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video over HDBaseT
• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
• HDBaseT feature support: HD Video and Audio, Bi-directional analog audio, and Control (bidirectional USB/IR/RS-232 pass-through)
• USB 2.0 Type-A device ports and 1 Micro USB 2.0 host port
• Supports providing PoH power from Transmitter to Receiver in same HDBaseT port
• Analogue audio I/O pathway across the HDBaseT link
• Audio output is selectable between the bypass & extraction

Specifications

• Inputs: 1x HDMI [1x HDMI local input Uncompressed AV and Data], 1x RJ45 [1x HDBaseT 3 HDMI & Propriety Data], 1x USB Micro [1x Service Port Propriety Data], 1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input]
• Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input], 2x USB Type A [2x USB pathway Propriety Data]
• PSU: PoH
• Dimensions (W × H × D): 128mm [W] x 25mm [H] x 108mm [D]
• Net Weight: 400g
• Gross Weight: 680g

Product Code: PUV-3050RX-UA
