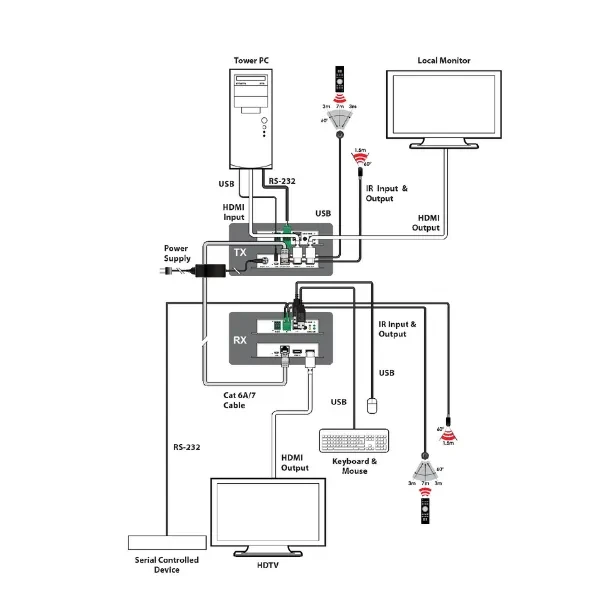

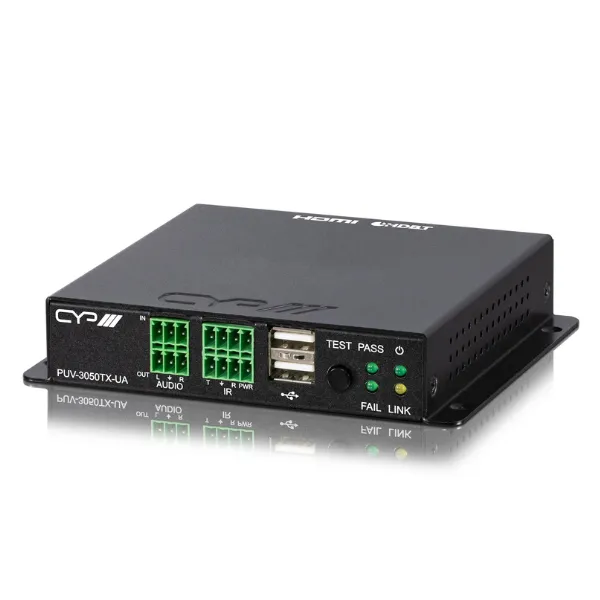

The PUV-3050TX-UA is part of the new generation of HDBaseT 3.0 technology. This transmitter is capable of extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit or 4K HDR) video and HD audio, as well as control signals, via a single run of Cat.6a/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and USB 2.0.

USB connectivity allows extension of USB signals, ideal for uses such as KVM (keyboard and mouse) or touch/interactive displays, and with USB 2.0 support this connection allows for fast data transfer and expanded peripheral compatibility.

For added flexibility, this Transmitter (when paired with a compatible receiver) supports bi-directional analogue audio.

Features

• Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video over HDBaseT
• HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant
• HDBaseT 3.0 compliant (backwards compatible with HDBaseT 2.0/1.0)
• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
• HDBaseT feature support: HD Video and Audio, bi-directional analogue audio, and control (bi-directional USB/IR/RS-232 pass-through)
• USB 2.0 Type-A device ports and 1 × Micro USB 2.0 host port
• Supports providing PoH power from Transmitter to Receiver via the same HDBaseT port
• Analogue audio I/O pathway across the HDBaseT link
• Local HDMI output
• Local analogue audio output (from analogue line in)

Specifications

• Inputs: 1 × HDMI [HDMI Uncompressed AV and Data]; 1 × USB Micro [Service Port Proprietary Data]; 1 × Phoenix (3 pin) [Analogue Stereo (L/R) Audio Input]; 2 × USB Type-A [USB Pathway Proprietary Data]
• Outputs: 1 × HDMI [HDMI Local Bypass Uncompressed AV and Data]; 1 × RJ45 [HDBaseT 3 HDMI & Proprietary Data]; 1 × Phoenix (3 pin) [Analogue Stereo (L/R) Audio Output]
• PSU: 24V/2.7A
• Dimensions (W × H × D): 128 × 25 × 108 mm
• Net Weight: 400g
• Gross Weight: 1.38kg

Product Code: PUV-3050TX-UA
