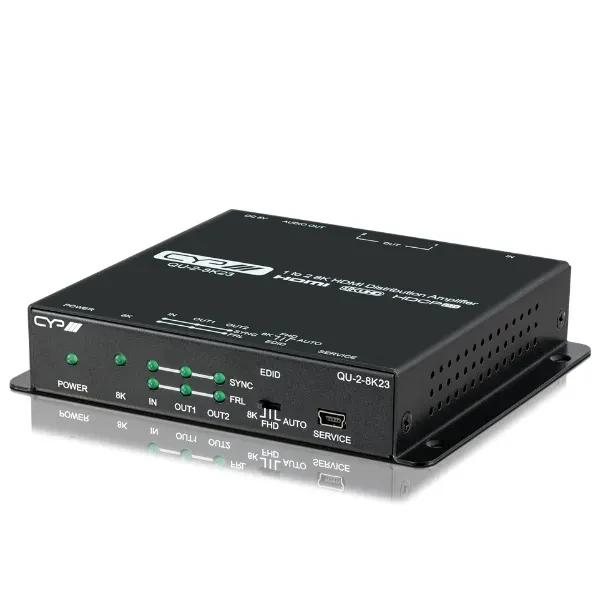

The QU-2-8K23 HDMI Splitter is a 1 by 2 HDMI Distribution Amplifier (Splitter) with HDCP 2.3. The QU-2-8K23 is an advanced solution for splitting a single HDMI source to two HDMI outputs. The QU-2-8K23 HDMI Splitter facilitates high performance audio and video distribution with support for up to 8K@30Hz or 8K@60Hz (4:2:0) HDR video as well as advanced multichannel HD Bitstream or LPCM audio along with other standard features defined by the HDMI 2.1 specification. The front panel contains a collection of status LEDs to inform you of the current operational state of the unit. A simple but effective EDID management system is provided and can be controlled via a front panel switch.

Features

• HDMI 2.1 and DVI 1.0 compatible
• HDCP 2.3 and HDCP 1.x compliant
• HDMI 1 to 2 Splitter
• Supports up to 8K UHD (48Gbps, 8K@30Hz 4:4:4, 10-bit) video signals
• Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats
• Supports pass-through of 8 channel LPCM, Bitstream and advanced HD Bitstream audio formats
• High quality DAC provides analog stereo breakout audio output via a 3.5mm port (LPCM 2.0 sources only, Bitstream sources will be muted)
• Simple to use EDID management options
• EDID settings controllable via front-panel switch

Specifications

• Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x USB Mini B [1x Service Port Propriety Data]
• Outputs: 2x HDMI [2x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
• PSU: 5V/2.6A
• Dimensions (W × H × D): 128mm  x 25mm x 108mm
• Net Weight: 360g
• Gross Weight: 760g

Product Code: QU-2-8K23
