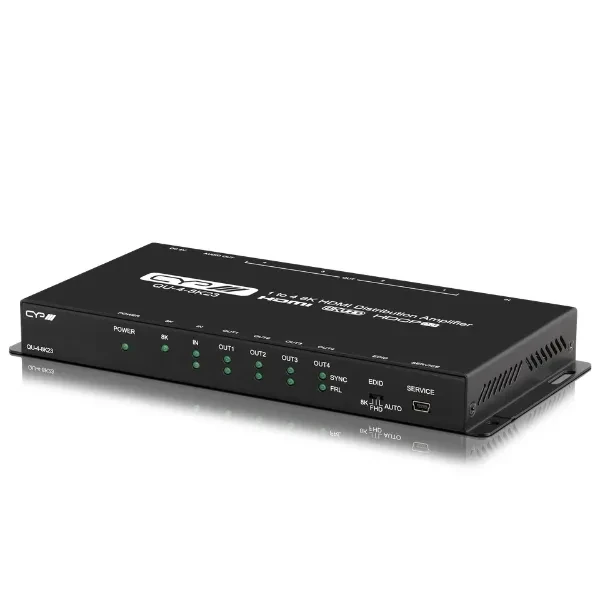

The CYP QU-4-8K23 is a 1 by 4 HDMI distribution amplifier (splitter) with HDCP 2.3 support, designed for splitting a single HDMI source across four HDMI outputs. The unit facilitates high-performance audio and video distribution with support for up to 8K@30Hz or 8K@60Hz (4:2:0) HDR video, alongside advanced multichannel HD Bitstream or LPCM audio and other standard features defined by the HDMI 2.1 specification. The front panel contains status LEDs to display the current operational state of the unit, and a simple EDID management system can be controlled via a front panel switch.

Ideal For

Suited to installations requiring a straightforward solution for distributing a single 8K HDMI source to four displays, with simple front panel EDID control and analogue audio breakout.

Features

• HDMI 2.1 and DVI 1.0 compatible
• HDCP 2.3 and HDCP 1.x compliant
• HDMI 1 to 4 splitter
• Supports up to 8K UHD (48Gbps, 8K@30Hz 4:4:4, 10-bit) video signals
• Supports current 10-bit and 12-bit HDR formats
• Supports pass-through of 8-channel LPCM, Bitstream, and advanced HD Bitstream audio formats
• High-quality DAC provides analogue stereo breakout audio via 3.5mm port (LPCM 2.0 sources only; Bitstream sources will be muted)
• Simple EDID management options, controllable via front panel switch

Specifications

• Inputs: 1 × HDMI (Uncompressed AV and Data), 1 × USB Type-B (Service Port Proprietary Data)
• Outputs: 4 × HDMI (Uncompressed AV and Data), 1 × 3.5mm Stereo Mini-Jack (Analogue Stereo L/R)
• Power Supply: 5V / 2.6A
• Dimensions (W × H × D): 231.5 × 25 × 108 mm
• Net Weight: 660g
• Gross Weight: 1.06kg

Product Code: QU-4-8K23
