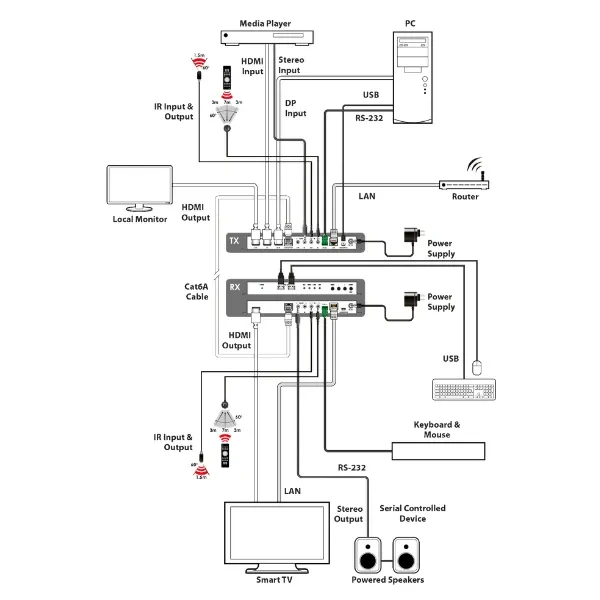

The CYP SDV-C2-TX is a SDVoE transmitter designed for high-quality, IP-routable AV extension over a 10G IP network with minimum latency. Using an ultra-light compression scheme (lossless for most content), it supports the extension of 4K audio and video streams from HDMI or DisplayPort sources alongside control and data signals. Advanced HDMI content including HDR, 10-bit colour, and multichannel HD Bitstream audio can be transmitted in pass-through mode. A single Cat.6A or better cable supports point-to-point transmission up to 100m, while IR, RS-232, USB 2.0, and Ethernet signals can be carried alongside the AV. A local HDMI bypass output is also provided. Basic configuration is available via front panel buttons with an OSD, with expanded functionality available through an optional IP Master Controller or compatible control software.

Ideal For

Suited to commercial AV installations requiring scalable 4K distribution over 10-Gigabit network infrastructure, including environments where multi-format source inputs, USB 2.0 extension, analogue audio handling, and KVM-style operation are required alongside the video signal.

Features

• SDVoE AV over IP transmitter supporting 4K@60 4:4:4
• HDMI 2.0 and DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant
• 1 × HDMI input and 1 × DisplayPort input
• 1 × HDMI bypass output and 1 × Cat.6A network output
• Point-to-point extension up to 100m via Cat.6A or better cable
• Ultra-light compression, lossless for most content
• IP routable with minimum latency (requires optional IP Master Controller or control software)
• Supports independent breakaway A/V matrix switching, video wall generation, and multi-view compositing (requires optional IP Master Controller or control software)
• Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Bypass modes only)
• Supports LPCM up to 8 channels, Bitstream and HD Bitstream audio pass-through from HDMI or DisplayPort sources
• Analogue stereo audio extension, insertion, and extraction (insertion and extraction require optional IP Master Controller or control software)
• IR, RS-232, USB 2.0, and Ethernet signal extension
• Source preview support when used with the IP Master Controller
• PoE powered (802.3at) when connected to a compatible 10GbE switch
• Basic configuration via front panel buttons with OSD

Specifications

• Inputs: 1 × HDMI (Uncompressed AV and Data), 1 × DisplayPort (Uncompressed AV), 1 × 3.5mm Stereo Mini-Jack (Analogue Stereo L/R), 1 × 3.5mm Stereo Mini-Jack (IR Receiver), 2 × USB Type-A (Proprietary Data), 1 × USB Micro (Service Port), 1 × Phoenix 3-Pin (RS-232), 1 × RJ45 (LAN)
• Outputs: 1 × RJ45 (SDVoE CAT HDMI & Proprietary Data), 1 × HDMI Bypass (Uncompressed AV and Data), 1 × 3.5mm Stereo Mini-Jack (Analogue Stereo L/R), 1 × 3.5mm Stereo Mini-Jack (IR Emitter)
• PoE: 802.3at
• Power Supply: 12V / 3A
• Dimensions (W × H × D): 231.5 × 25 × 108 mm
• Net Weight: 600g
• Gross Weight: 1.62kg

Product Code: SDV-C2-TX
