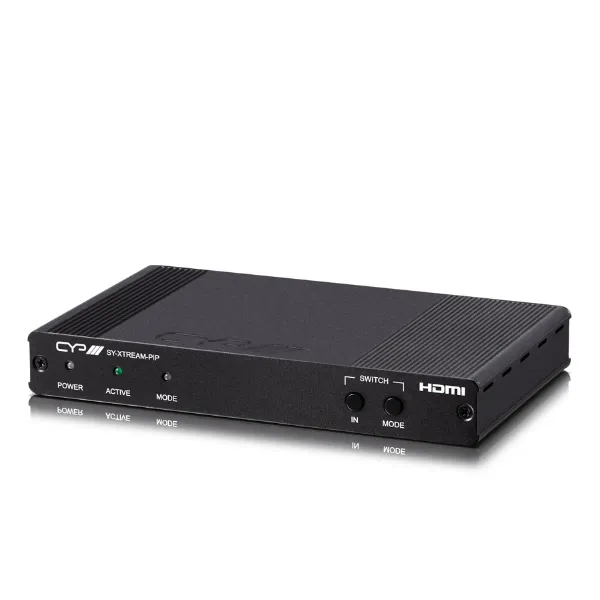

The CYP SY-XTREAM-PIP is an HDMI to USB video capture/recorder with HDMI bypass, supporting resolutions up to 18Gbps (600MHz) 4K UHD with HDR via the HDMI bypass pathway, while simultaneously streaming the audio and video signal at 1080p to a USB-connected PC for capture and re-broadcast. A special video timing stabilisation feature helps ensure the USB capture stream doesn't lock up or drop, even if the HDMI input source is intermittent or disconnected, keeping live streaming stable and uninterrupted.

USB capture is accomplished using the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support most common video capture, chat, or streaming software, including the free OBS streaming software for Windows, macOS, and Linux. The SY-XTREAM-PIP is powered directly via the USB 3.0 port, so no external power supply is required (a Y-cable is required when connecting via USB 2.0 to deliver the necessary power). Availability and access to the unit's controllable features depend on the third-party software used.

Ideal For

Suited to live streamers, content creators, and AV professionals requiring a stable HDMI to USB capture solution with picture-in-picture, HDMI bypass, and flexible audio mixing for live broadcast applications.

Features

• 2 HDMI inputs: input 1 resolution up to 4K@60, input 2 up to 1080p@60
• 1 HDMI bypass output (follows source up to 4K@60)
• Configurable analogue audio pathway: mic or line
• USB 3.0 (Type-B to Type-A) connection to PC for data transmission
• Mode select button for changing the layout of video sources
• Audio auto switch for prioritised audio insertion or defaults
• Audio mixer for flexible mixing of analogue mic input with HDMI input audio
• PC software available for detailed control and setting
• Video timing stabilisation feature to prevent USB capture stream lock-up or drop
• USB powered — no external PSU required

Specifications

• Inputs: 2 × HDMI (Uncompressed AV and Data), 1 × 3.5mm Stereo Mini-Jack (Switchable Analogue Audio Stereo L/R / Microphone)
• Outputs: 1 × HDMI (Bypass, Uncompressed AV and Data), 1 × USB 3 Type-B (Power & Data)
• Power Supply: USB powered
• Dimensions (W × H × D): 180 × 25 × 108 mm
• Net Weight: 360g
• Gross Weight: 600g

Product Code: SY-XTREAM-PIP
