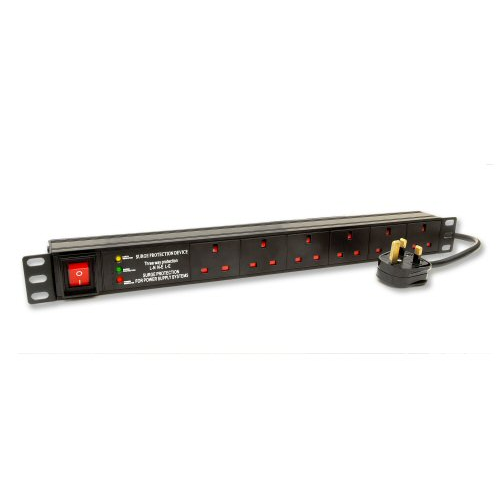

Kauden PDU6/MOV 6-way Horizontal Surge Protected & Filtered Mains PDU

Built to a very high standard and designed to offer a superior level of protection each of the Surge Protection Components (VDR/MOV) is duplicated by putting two components in parallel. Kauden have also included an input EMC filter to combat Radio Frequency Interference consisting of two X capacitors with a common mode choke to make this a truly first class piece of equipment.

If the unit suffers a worst case strike then the internal thermal fuses will blow and the green light will go out to warn you that it no longer functions. A circuit to detect a disconnected earth will show up as a failure by the Earth Status Indicator not lighting.

• Horizontal 19” rack mounted
• Protected L-N   L-E     N-E

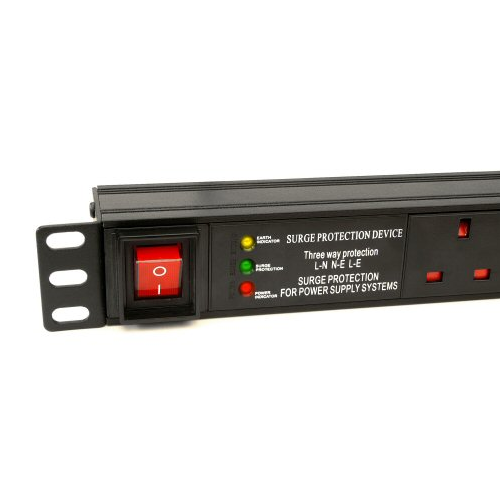

• Green light “on” indicates your equipment is protected.
• Radio Frequency Interference protection (Filtered)
• Earth Terminal – legally requirement on PDU Surge Protectors .
• 3 metre mains cable (Approx)
• On – Off Switch
• 1U

Dimensions(L x D x W (mm)): 440mm x 46mm x 44mm

Product Code: PDU6/MOV
