Although 4K UltraHD has arrived, not every client will ditch their existing HD screens overnight so the ability to support a combination of 4K and 1080p HD displays within the same distribution is vital, especially when resolution conflicts that effect systems, including screens of different capabilities, are considered.

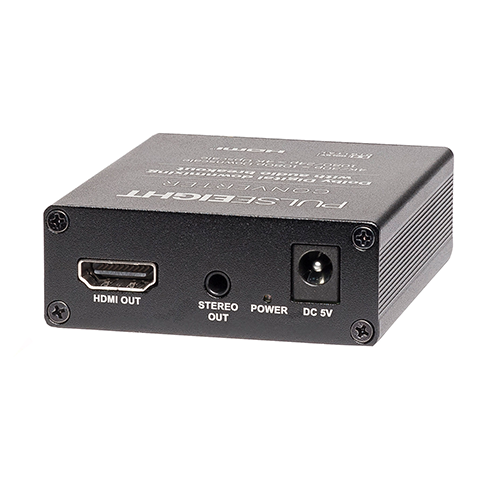

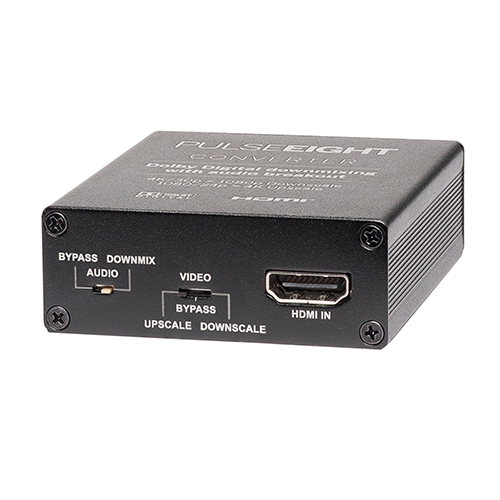

The HDMIDAC video scaler and digital audio converter (DAC) is designed to be placed between a display and a source device. It adjusts resolution and audio from an incoming HDMI source and scales the output to a level compatible with its display capabilities.

This product is the ideal solution to accommodate both HD and 4K sources and displays within a multi-zone residential or commercial distribution system

• In line downmix of incoming  Dolby Digital to stereo PCM  audio over HDMI
• 3.5mm audio breakout
• Downscale 4K/30p > 1080/24p, to enable 1080p screens to view 4K sources through a 4K matrix system
• Upscale 1080/24p > 4K/30p, for connection to 4K screen
• In-line scaling solution for installations which use both 4K and HD displays without compromising source resolution
• Supports resolutions up to 3840x2160p @24/25/30Hz
• Full 3D support up to 1080p/24hz
• Up to 6 channels of input support  (up to 5.1 surround) of audio  encoded in Dolby Digital
• Low-latency digital filtering • Accepts uncompressed digital audio  input signals
• Includes digital interpolation filter
• Auto-samples at frequencies of 32, 44.1 and 48KHz
• Supports audio signals up to 24bit with sampling rates up to 192KHz
• THD+N (Total harmonic distortion plus noise) rating: a-93db
• Switchable input selection for video/audio scaling or signal pass-through
• Equalizes and boosts HDMI signal for longer distance transmissions
• Compact design
• LED power indicatior

Specifications

• Dimensions (D x H x W): 7.7cm x 2.3cm x 6.5cm
• Input: HDMI 1.4a
• Max Video Clock Speed: Input: 300Mhz, Output: 300Mhz
• Output: HDMI 1.4a
• Video Amplifier Bandwidth: 10.2Gbps
• Video Impedance: 100Ω
• Input Video Signal: 0.5 - 1.2V p-p
• Max Signal Link Range: 2160/30 @ 24bit True Colour - 1080/24p @ 36bit Deep Colour
• Transmission Distance: Input - 7m/22ft (4K), 10m/33ft (1080p), Output - 7m/22ft (4K), 10m/33ft (1080p)
• Max In/Out Resolution Supported: Up to 3840 x 2160p @ 24/25/30Hz
• Colour Supported: 4K/24bit, 1080p/36bit
• 3D Supported: Up to 1080/24p - Frame packing/sequential (Blu-ray), Interlaced stereoscopic (satellite/cable broadcasts)
• Scale Video Up From: 1920x1080p @ 24/25/30Hz to 3840x2160p @ 24/25/30Hz
• Scale Video Down From: 3840x2160p @24/25/30Hz to 1920x1080p @ 24/25/30Hz
• Audio Input Format: 5.1 Dolby Digital or 2ch Stereo PCM
• Audio Output Format: Passthrough or 2ch PCM with Downmix selected
• ESD Protection: ± 8kV (Air-gap discharge) ± 4 kV (Contact discharge)
• Power Consumption: Max 1Amp @ 5V 5 Watts
• Operating Temperature: 0 to +35°C (32 to +95°F)
• Surge Protection: IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 25A (8/20μs)
• Safety & Emission: CE, FCC, RoHS

Product Code: HDMIDAC
