Pulse-Eight neo:X Full 4K 8x10 Video & Audio Matrix

£x.xx £x.xx

Manufacturer: Pulse Eight

Login to view price

Product Information

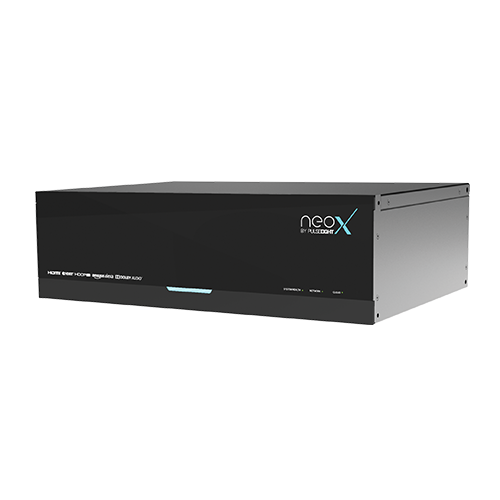

The neo:X is Pulse-Eight’s newest fixed format video matrix which features 8 HDMI inputs, 8 HDBaseT outputs alongside an additional 2 HDMI outputs. Implementing our latest technology, the neo:X can support 4K/60, 4:4:4, 8bit or 4K/60 4:2:2, 12bit up to 100 meters. It also supports 1080p up to 150 meters – currently further than any other in our matrix range.

With a built-in audio matrix, the neo:X uses ARC (audio return channel) to enable the ability to send the audio signals to separate speakers within the installation. As with all of our matrixes, the neo:X supports multiple control methods including CEC, IR, Alexa voice control and set top box IP control.


Core Features

  • Ultra HD 4K Video Transmission (upto 340Mhz), 1080p, 3D
  • Full HDCP 2.2 Support

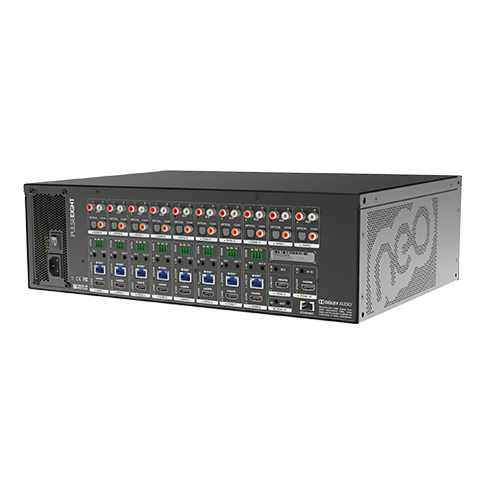

  • 8x HDMI Inputs
  • 8x HDBaseT Class C + DSC Outputs
  • 2x HDMI Outputs
  • Audio Return Channel
  • Audio Breakout of input sources
  • HDMI-CEC Bi-Directional Control
  • Alexa Voice Control
  • Bi-Directional IR Control
  • Responsive Web Interface
  • Automatic EDID Management
  • Three year standard warranty

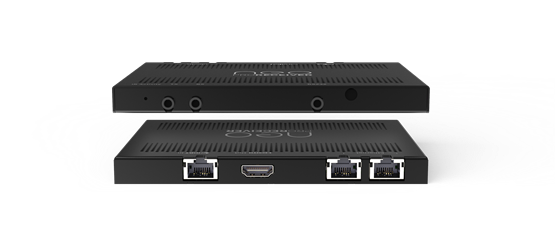

  • Kit includes 8x PoH neo:Ultra Receivers



Specifications:
HDMI inputs:
8
HDBaseT Outputs:8x HDBaseT Class C + DSC
HDMI Outputs: 2
Max HDBaseT Cable Distance 4K: 100 Meters
Max HDBaseT Cable Distance 1080p:150 Meters
HDBaseT Recommended Cable: Cat5e or greater
Colour Supported: 4K:12bit,1080p:12bit
TMDS Clock Speed: 600Mhz
Max Bandwidth: 18Gbps
Encryption:HDCP 1.4 and HDCP 2.2

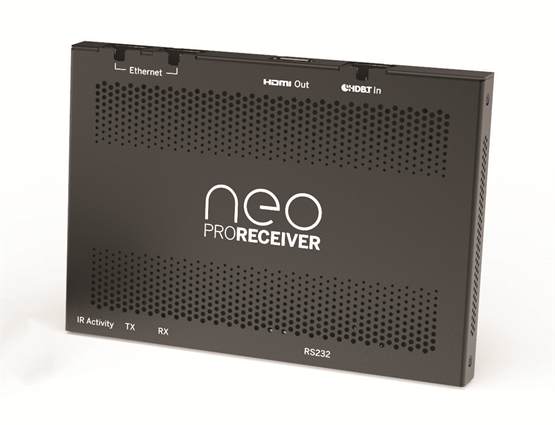

PoH: 8x neo:Ultra PoH Receivers Included
Infrared: Bi-Directional
CEC Control: Full
Voice Control:Alexa
IP Config: Yes
Monitoring: Real Time Remote Monitoring Portal
ARC (Audio Return Channel): Yes
DSC (Display Stream Compression):Yes
Ethernet Pass-through: Yes

Power Supply:IEC C14 Inlet - 100-240V 4.0/2.0A 50/60Hz
Power Consumption:Max 2Amps@240V
Material:Brushed Aluminium (Anodised)
Product Dimensions: 44 x 13.2 x 31.6
Product Weight: 4.83kg (Matrix)
Operating Temp Range:0 to +35°C (32 to +95°F)
Operating Humidity Range: 5 to 90%RH (no condensation)
Manufactured In:Great Britain by Pulse-Eight





Product Code: P8-NEOX
