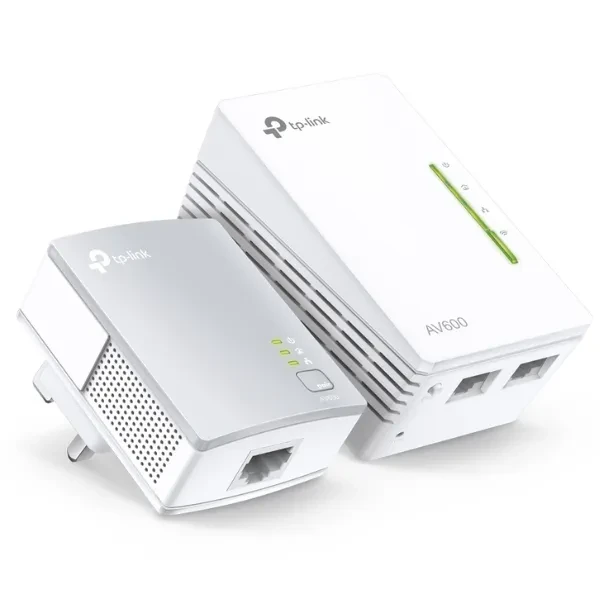

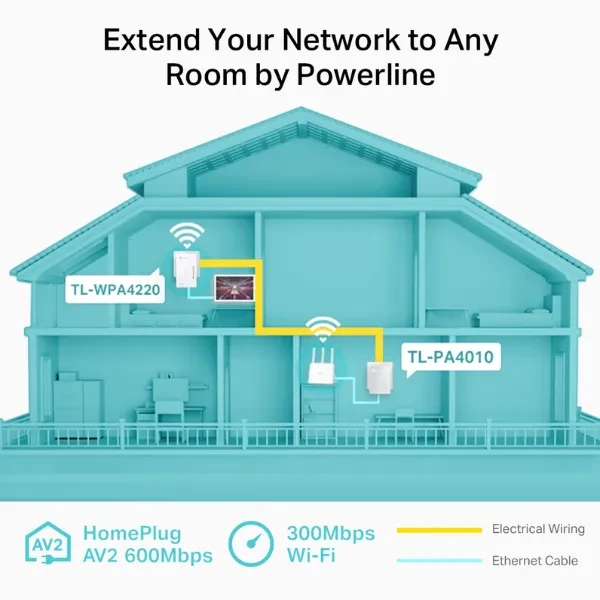

The TP-Link TL-WPA4220 KIT is an AV600 Powerline Wi-Fi kit that turns your home's existing electrical wiring into a high-speed network, with no new wires or drilling. It uses the HomePlug AV2 standard to deliver powerline speeds of up to 600 Mbps* over distances of up to 300 metres wherever there is a power outlet. The TL-WPA4220 adapter adds 300 Mbps* Wi-Fi to hard-to-reach areas and has 2 Ethernet ports for wired devices such as game consoles and smart TVs. The TL-PA4010 adapter connects to your router.

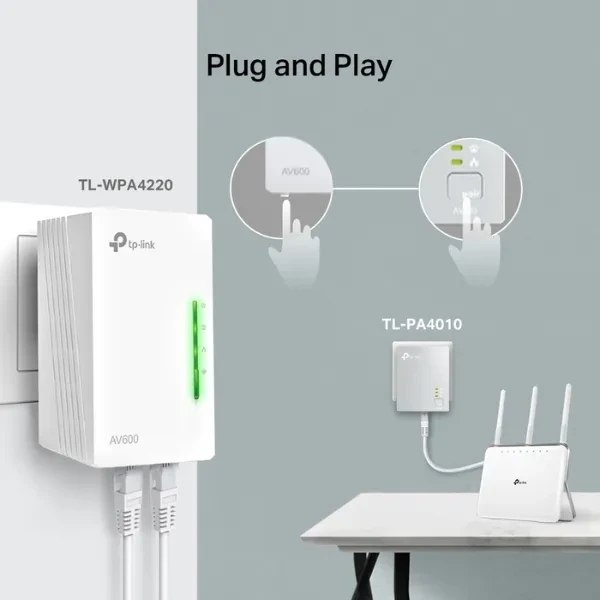

Setup is plug and play. Connect the TL-PA4010 to your router, then plug the TL-WPA4220 in wherever you need wired and wireless internet. Pressing the Wi-Fi Clone button copies your router's network name and password, and any later setting changes are applied across the powerline network. Pressing the Pair button on each adapter creates a more secure network. The kit is managed through the tpPLC app for iOS and Android, or the tpPLC Utility for PC.

Powerline adapters must be deployed in sets of two or more and be connected to the same electrical circuit.

Features

• HomePlug AV2 standard with powerline speeds of up to 600 Mbps*
• 300 Mbps* Wi-Fi from the TL-WPA4220 extender
• Range of up to 300 metres over existing electrical wiring
• Plug and play setup
• 2 Ethernet ports on the TL-WPA4220, with 2 Ethernet cables included
• One-touch Wi-Fi Clone copies the network name and password from your router
• Wi-Fi Auto-Sync: add more extenders with the Pair button and sync SSID, password, Wi-Fi Schedule and LED Schedule across all network devices
• Pair button for a more secure powerline network
• 128-bit AES powerline encryption
• Wi-Fi security with WPA-PSK / WPA2-PSK and WEP encryption
• Manage Wi-Fi settings, Wi-Fi schedules and LED indicators through the tpPLC app (iOS and Android) or the tpPLC Utility (PC)
• Compatible with all HomePlug AV and AV2 standard powerline adapters**

Specifications

• Transmission Speeds: Powerline up to 600 Mbps; Ethernet 10/100 Mbps
• Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n

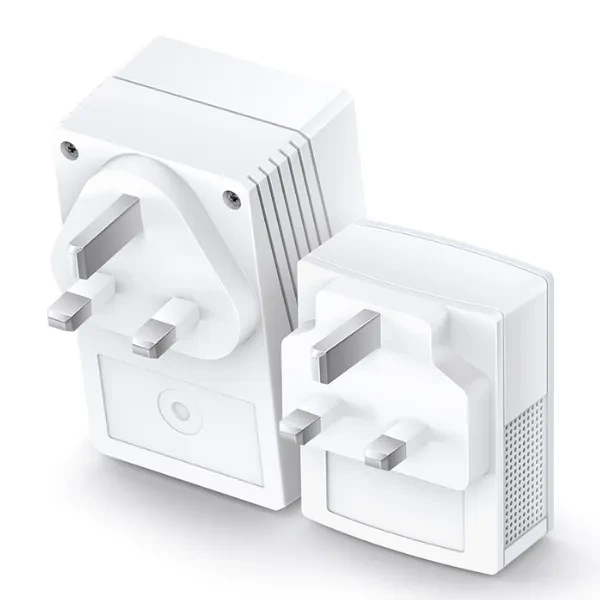

• Plug Type: UK
• Interface: TL-WPA4220: 2 Ethernet Ports; TL-PA4010: 1 Ethernet Port
• Buttons: Pair, Reset, Wi-Fi Clone
• LEDs: Power, Powerline, Ethernet, Wi-Fi
• Range: Up to 300 metres / 1000 feet over existing electrical wiring
• Modulation Technology: OFDM (PLC)
• Max. Power Consumption: TL-WPA4220: Maximum 5.6W, Typical 5.2W; TL-PA4010: Maximum 2.6W, Typical 2.3W
• Dimensions (W × D × H): TL-WPA4220: 54 × 40 × 94 mm; TL-PA4010: 52 × 28.5 × 65 mm
• Certification: CE, RoHS
• System Requirements: Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
• In the Box: TL-WPA4220 and TL-PA4010, 2 × Ethernet Cables, 1 × Quick Installation Guide

Product Code: TL-WPA4220KIT
